MC55320CP

Overview

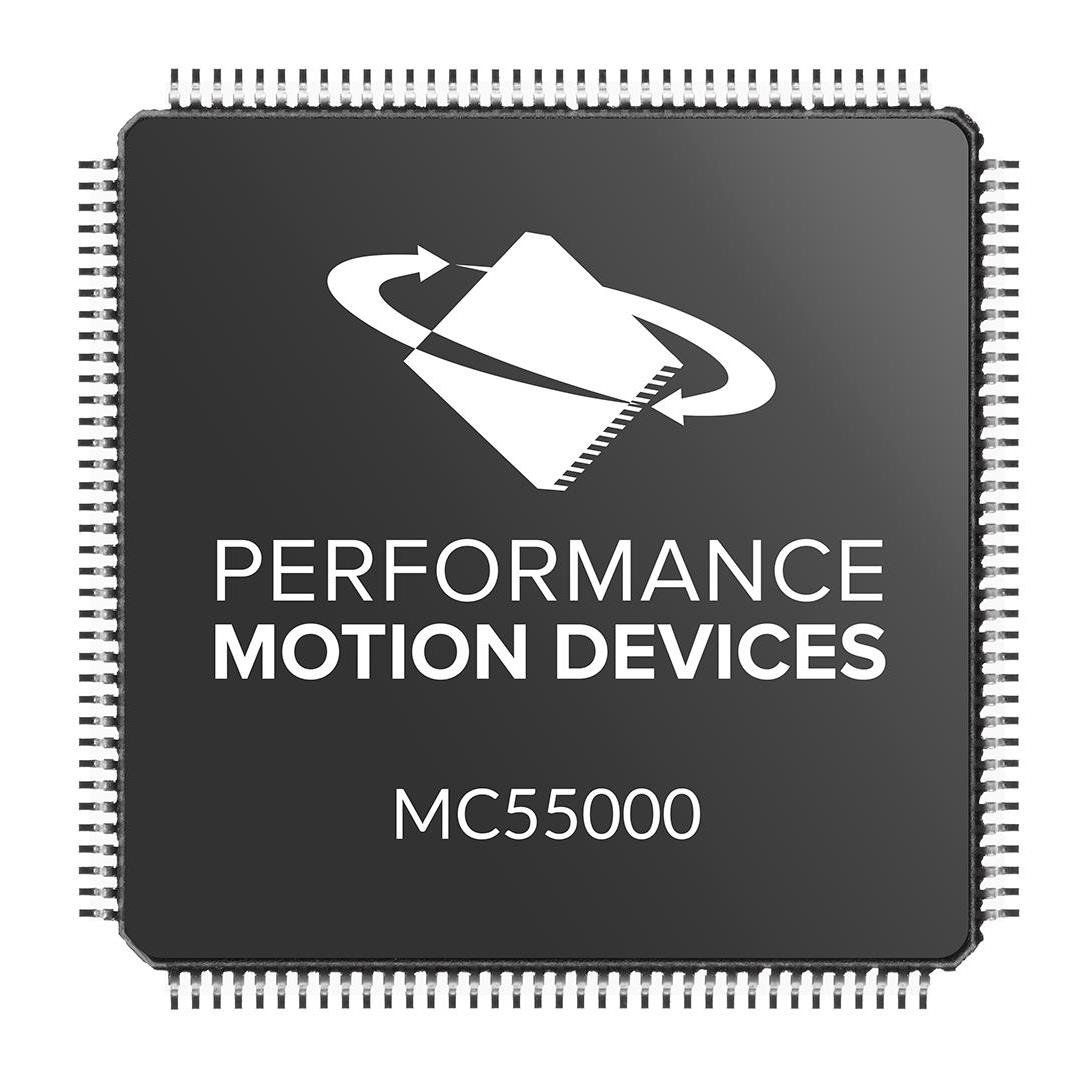

The MC55320CP is a three-axis motion controller from the Magellan 2-IC chipset, designed for pulse and direction output applications. It operates within a supply voltage range of 3 V to 3.6 V, drawing a typical operating current of 120 mA with an output current capability of 2 mA. The component is housed in an LQFP-144 package suitable for surface mount technology. It supports an industrial temperature range from -40 °C to +85 °C and complies with RoHS standards.

Feature Summary

• Integrated three-axis control logic within the Magellan 2-IC motion control architecture
• Supports standard pulse and direction interface protocols for motor positioning
• Designed for low-power operation with integrated power management characteristics

Applications

• Multi-axis stepper motor control systems
• Industrial automation equipment requiring precise motion sequencing
• Embedded motion control modules in compact machinery

Procurement Notes

Verify the specific revision level and packaging configuration against the manufacturer's latest datasheet before integration. Confirm that the LQFP-144 footprint matches the design layout. Ensure thermal management strategies align with the specified operating temperature range of -40 °C to +85 °C. Check for any updated environmental compliance declarations required by regional regulations.

Selection Notes

Select this component when a dedicated three-axis pulse and direction controller is required within the Magellan ecosystem. It is suitable for designs needing low quiescent current and compact surface-mount integration. Compare against single-axis variants if fewer axes are sufficient, or higher-performance drivers if direct high-current outputs are needed without external circuitry.

Part Context

This part belongs to the Magellan family of motion processors from Performance Motion Devices. It functions as a central controller coordinating multiple drive stages. The chipset approach allows for distributed control architectures, reducing microcontroller load. It complements driver ICs to form complete motion solutions for complex mechanical systems.

FAQ

What type of control interface does the MC55320CP support?

It supports pulse and direction output interfaces for commanding motor movement.

Is the MC55320CP compatible with other Magellan series components?

Yes, it is part of the Magellan 2-IC motion control chipset designed for interoperability.
