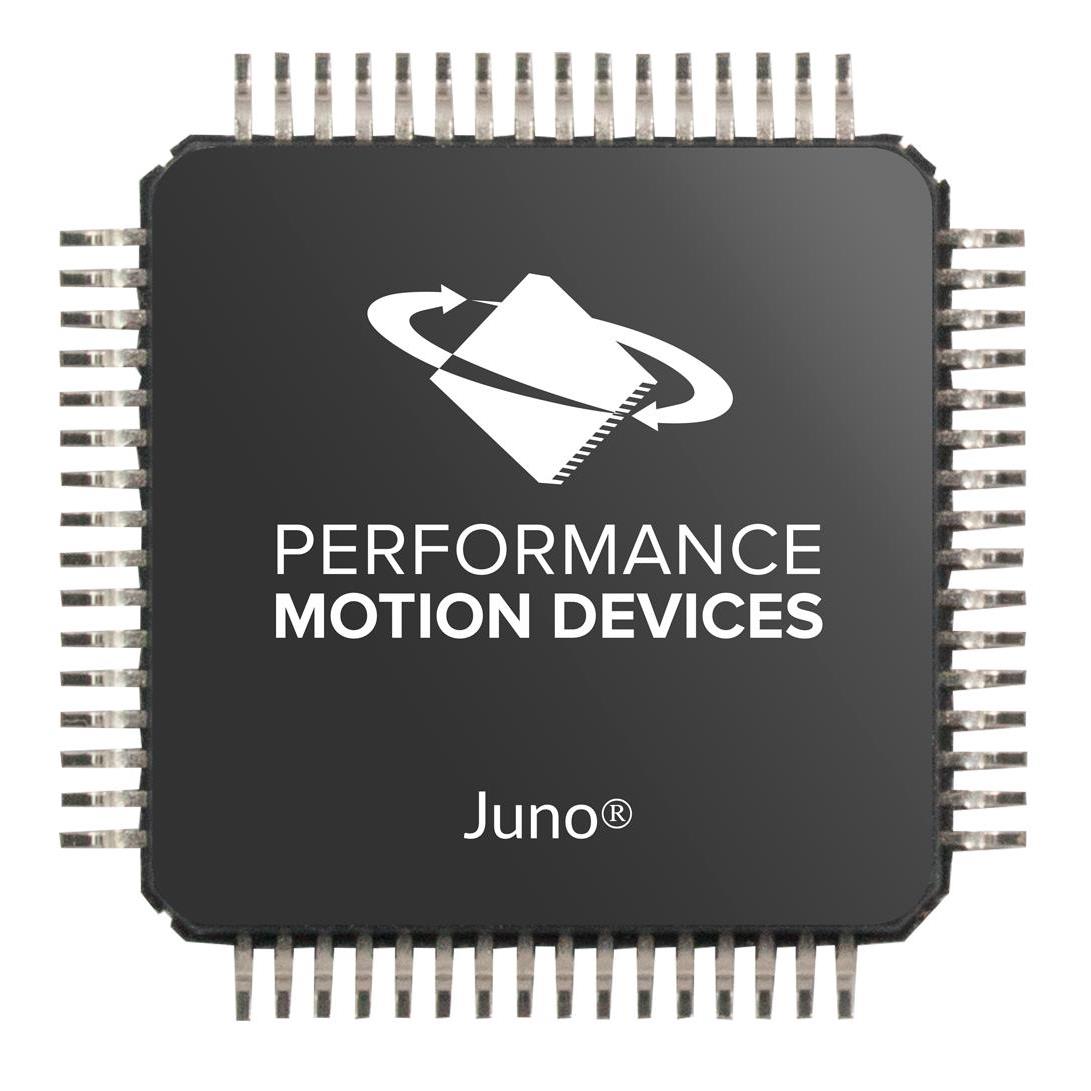

MC71113

$48.31

Description：JUNO DCB VEL CTRL IC, 64PIN
Series：Juno®
Mfr：Performance Motion Devices, Inc.
Package：Tray

SKU:50f79ac8329a Category: Motor Drivers, Controllers Brand: Performance Motion Devices, Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：JUNO DCB VEL CTRL IC, 64PIN
Series：Juno®
Mfr：Performance Motion Devices, Inc.
Package：Tray
Motor Type - Stepper：-
Motor Type - AC, DC：Brushed DC, Voice Coil Motor
Function：Controller - Speed
Output Configuration：High Side, Low Side
Interface：CAN, RS-232, RS-485, SPI
Technology：CMOS
Step Resolution：-
Applications：Automation, Industrial, Multipurpose
Current - Output：4mA
Voltage - Supply：3.3V
Voltage - Load：3.3V
Operating Temperature：-40°C ~ 105°C (TA)
Mounting Type：Surface Mount
Package / Case：64-TQFP
Supplier Device Package：64-TQFP (10x10)
Grade：-
Qualification：-

Download product information

MC71113

Overview

The MC71113 is a Juno family integrated circuit designed for velocity and torque control of DC brushed motors. It operates within a supply voltage range of 3 V to 3.6 V and draws a typical operating supply current of 115 mA. The component supports an operating temperature range from -40 °C to +105 °C and is housed in a TQFP-64 surface-mount package. It is classified under Motor / Motion / Ignition Controllers & Drivers.

Feature Summary

Provides closed-loop velocity and torque control capabilities for DC brushed motor applications.
Integrates motion control logic within a compact surface-mount package suitable for space-constrained designs.

Applications

DC brushed motor velocity regulation
Torque-controlled actuation systems
Industrial motion control modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct package variant and temperature grade. Confirm RoHS compliance status and moisture sensitivity level requirements prior to integration into the assembly process.

Selection Notes

Select this component when precise velocity or torque control of a DC brushed motor is required. Ensure the system power supply remains within the 3 V to 3.6 V range and that the thermal environment supports operation up to 105 °C.

Part Context

The MC71113 belongs to the Juno series of motion control ICs from Performance Motion Devices. This series focuses on providing integrated control solutions for various motor types, including brushed DC, brushless DC, and stepper motors, offering a scalable platform for motion applications.
