MCB1005S121HBP

Chip Ferrite Bead Overview

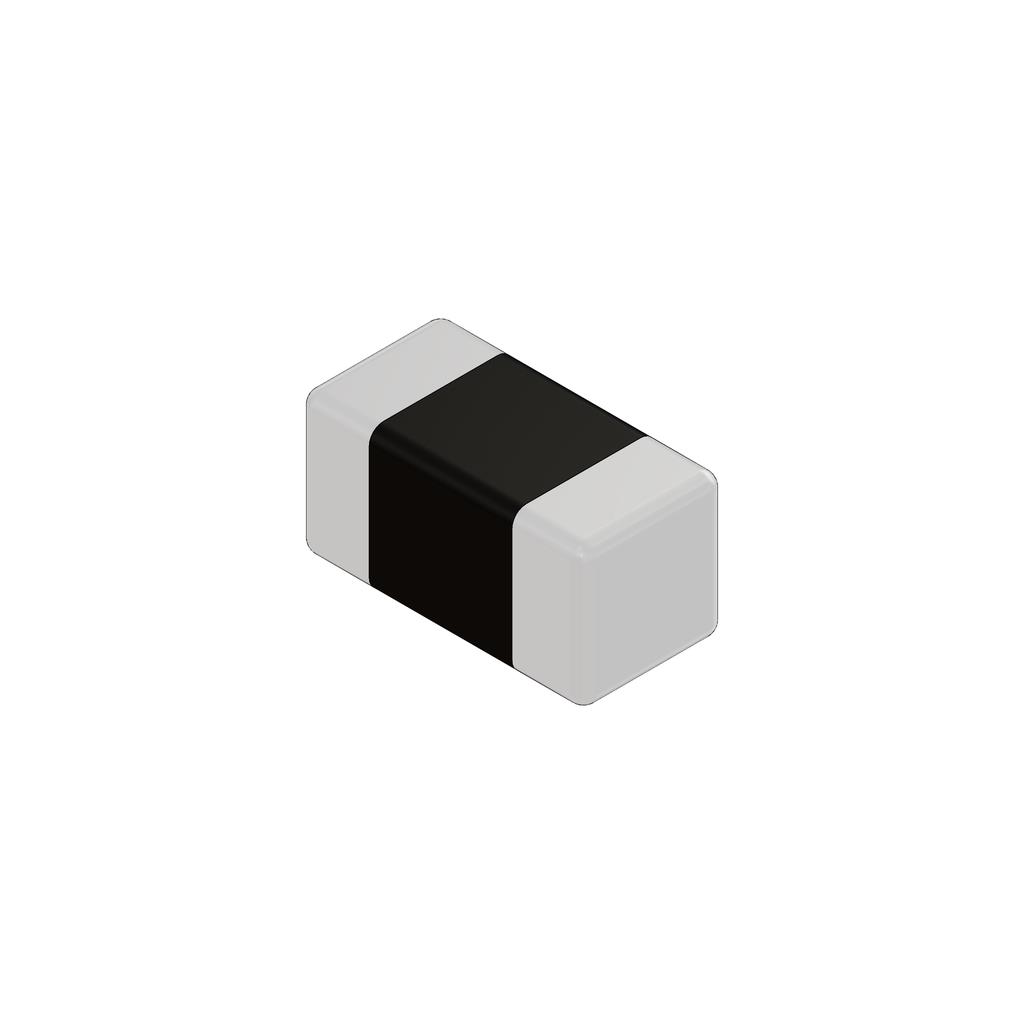

The MCB1005S121HBP is a surface-mount ferrite chip manufactured by INPAQ Technology Co., Ltd. It features a single-function design housed in an EIA STD package size 0402 (1.0mm x 0.5mm x 0.5mm). The component has two pins and operates within a temperature range of -55 °C to 125 °C. Key electrical specifications include a maximum DC resistance of 0.3 Ω, an output impedance of 120 Ω, and a rated current of 0.6 A.

Chip Ferrite Bead Feature Summary

• Monolithic inorganic material construction for high reliability
• Closed magnetic circuit design to avoid crosstalk
• Suitable for reflow and wave soldering processes

Chip Ferrite Bead Applications

• Computer circuits
• Communication equipment
• Consumer electronics
• Automotive electronics

Chip Ferrite Bead Procurement Notes

Verify the specific suffix HBP against official INPAQ documentation to confirm exact impedance tolerance and packaging details. Ensure compatibility with standard 0402 footprint requirements during procurement planning. Cross-reference RoHS compliance status with the latest manufacturer declarations prior to ordering.

Chip Ferrite Bead Selection Notes

Select this component when a 0402 form factor is required for space-constrained designs. The 0.6 A rated current supports moderate signal lines. Verify that the 120 Ω impedance at the target frequency aligns with the noise suppression requirements of the specific application circuit.

Chip Ferrite Bead Part Context

This part belongs to the MCB-S/B series of chip ferrite beads from INPAQ. The series utilizes closed magnetic circuit technology to minimize electromagnetic interference coupling between adjacent components. These components are designed for effective filtering across a wide range of frequencies in compact electronic assemblies.

Chip Ferrite Bead Replacement Considerations

Check for direct substitutes within the same INPAQ series with identical 0402 dimensions and similar impedance characteristics. Ensure any replacement maintains the 0.6 A current rating and compatible operating temperature range.
