MCB1005S121IBPDG

Chip Ferrite Bead Overview

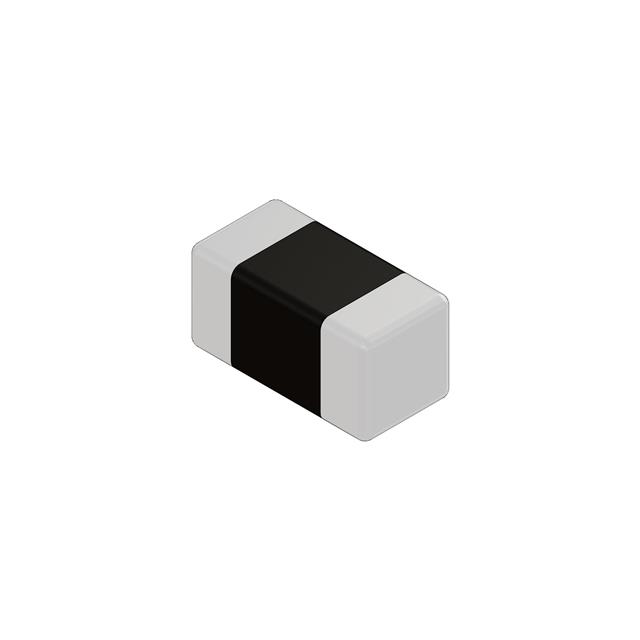

The MCB1005S121IBPDG is a single-function ferrite chip bead in a 0402 (1005 metric) surface-mount package. It exhibits an impedance of 120 Ohms at 100 MHz and supports a rated current of 600 mA with a maximum DC resistance of 400 mOhm. The component operates within a temperature range of -55 °C to 125 °C, featuring physical dimensions of 1.0 mm length, 0.5 mm width, and 0.5 mm height.

Chip Ferrite Bead Feature Summary

• Monolithic inorganic material construction for robust performance
• Closed magnetic circuit design to minimize crosstalk
• Suitable for reflow and wave soldering processes

Chip Ferrite Bead Applications

• Power line noise suppression
• Signal line filtering
• High-frequency electromagnetic interference reduction

Chip Ferrite Bead Procurement Notes

Verify the complete part number including the suffix 'DG' to ensure compliance with specific environmental standards. Confirm that the 0402 package size aligns with your PCB footprint requirements. Check the latest datasheet for any updates on recommended soldering profiles and storage conditions to maintain component integrity during assembly.

Chip Ferrite Bead Selection Notes

Select this component when a compact 0402 footprint is required for high-frequency noise suppression. Ensure the 600 mA current rating meets the circuit's operational demands without saturation. Verify that the 120 Ohm impedance at 100 MHz matches the target frequency band for effective attenuation. Consider the low DC resistance to minimize voltage drop in power-sensitive applications.

Chip Ferrite Bead Part Context

This ferrite bead belongs to INPAQ Technology's MCB series, which specializes in EMI/EMC solutions. The series utilizes monolithic inorganic materials and closed magnetic circuits to provide efficient noise suppression in a small form factor. These components are designed for use in computer, communication, and consumer electronic devices requiring reliable signal integrity.

Chip Ferrite Bead Replacement Considerations

Cross-reference with other 0402 ferrite beads offering similar 120 Ohm impedance at 100 MHz and comparable current ratings. Ensure substitute parts match the physical dimensions and thermal characteristics. Verify that alternative components meet the same RoHS and REACH compliance standards as specified by the original manufacturer.
