MCB1608S102IBPDG

Chip Ferrite Bead Overview

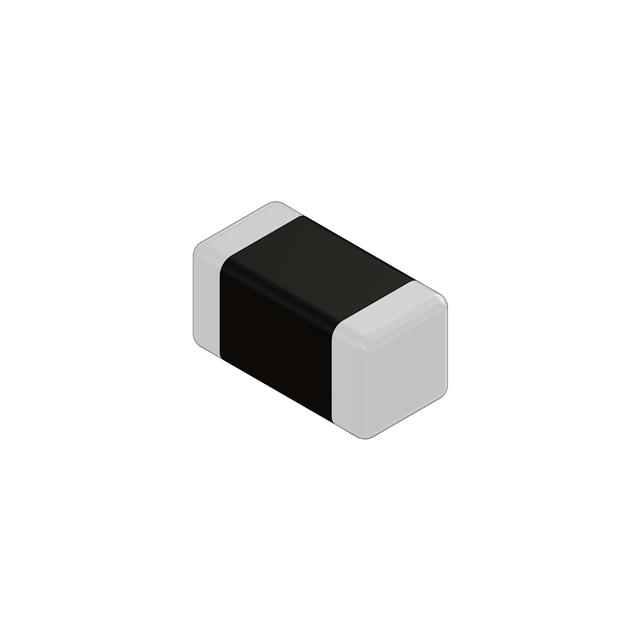

The MCB1608S102IBPDG is a monolithic ferrite bead manufactured by INPAQ Technology Co., Ltd. It features a closed magnetic circuit design to prevent crosstalk and supports surface mount technology for reflow and wave soldering processes. The component operates with a rated current of 600mA and exhibits an impedance of 1000 Ohms at 100 MHz. Its physical dimensions adhere to the standard 0603 (1608 Metric) package, ensuring compatibility with automated assembly lines.

Chip Ferrite Bead Feature Summary

• Monolithic inorganic material construction ensures structural integrity
• Closed magnetic circuit design effectively avoids signal crosstalk
• Surface mount type suitable for both reflow and wave soldering

Chip Ferrite Bead Applications

• Power line noise suppression
• Signal line EMI filtering
• General purpose electromagnetic interference protection

Chip Ferrite Bead Procurement Notes

Verify that the ordering suffix matches the specific packaging requirement, such as Digi-Reel, if reel-based distribution is necessary. Confirm the impedance tolerance and current rating align with the target circuit design specifications before finalizing the purchase order to ensure operational reliability.

Chip Ferrite Bead Selection Notes

Select this component when high-frequency noise attenuation is required on power or signal lines within space-constrained designs. The 0603 footprint allows for dense PCB layouts while maintaining adequate current handling capabilities. Ensure the application environment does not exceed the thermal limits associated with the specified DC resistance.

Chip Ferrite Bead Part Context

This ferrite bead belongs to INPAQ's multilayer chip bead product line, which focuses on electromagnetic interference suppression. The manufacturer provides diverse electronic protection solutions including ESD suppressors and transient voltage suppressors for computer, communication, and consumer electronics markets.

Chip Ferrite Bead Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other 0603 ferrite beads only after verifying identical impedance curves and current ratings through official manufacturer datasheets.
