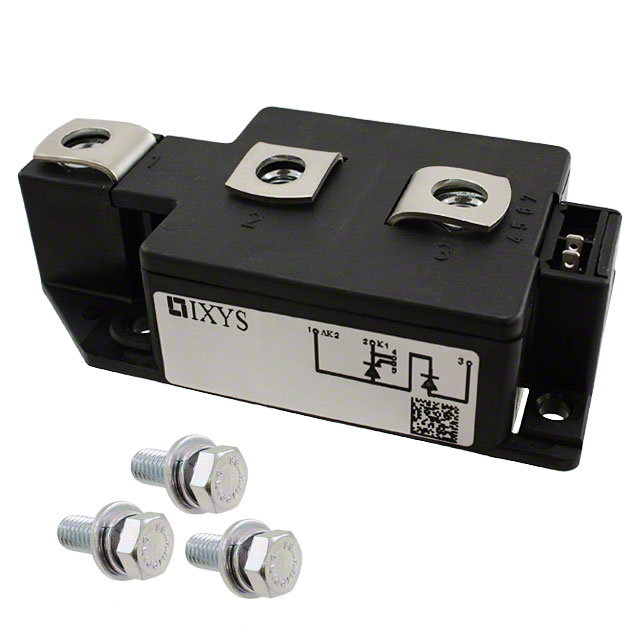

MCC220-08IO1

Description：MOD THYRISTOR DUAL 800V Y2-DCB
Series：-

SKU:bbcf36578cc3 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOD THYRISTOR DUAL 800V Y2-DCB
Series：-
Mfr：IXYS
Package：Box
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：800 V
Current - On State (It (AV)) (Max)：250 A
Current - On State (It (RMS)) (Max)：400 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：8500A, 9000A
Operating Temperature：-40°C ~ 140°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Y2-DCB
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：150 mA
Grade：-
Qualification：-

Download product information

MCC220-08IO1

Overview

The IXYS MCC220-08IO1 is a thyristor/diode module rated for a repetitive peak reverse voltage of 800 V. It supports an average on-state current of 250 A at a case temperature of 85°C and a root-mean-square current of 400 A. The device withstands non-repetitive surge currents up to 9000 A under specific conditions. Key electrical parameters include a maximum gate trigger current of 150 mA, a holding current of 150 mA, and a typical junction-to-case thermal resistance of 0.139 K/W per semiconductor element.

Feature Summary

Features direct copper bonded aluminum oxide ceramic base plates for efficient thermal management.
Incorporates planar passivated chips to enhance reliability and performance.
Provides high isolation voltage capability of 3600 V~ between terminals and the base plate.

Applications

Motor control systems
Power converter circuits
Industrial furnace heating and temperature regulation
Lighting control equipment

Procurement Notes

Verify component authenticity by checking manufacturer markings against official datasheet specifications. Confirm package integrity and terminal condition upon receipt. Ensure storage environment meets specified temperature ranges to maintain device performance before installation.

Selection Notes

Select this module based on required voltage ratings and current handling capabilities. Evaluate thermal resistance values to determine appropriate heatsinking requirements. Consider physical dimensions and mounting torque specifications to ensure compatibility with existing mechanical assemblies.

Part Context

This component belongs to the MCC 220 series of thyristor/diode modules manufactured by IXYS. The series utilizes international standard packaging designs. Other variants in the family offer different voltage ratings while maintaining similar current capacities and structural features.

Replacement Considerations

Direct substitutes within the same series include MCC220-12IO1, MCC220-14IO1, MCC220-16IO1, and MCC220-18IO1. These alternatives share identical current ratings but provide higher voltage blocking capabilities. Verify pinout compatibility when considering cross-series replacements.
