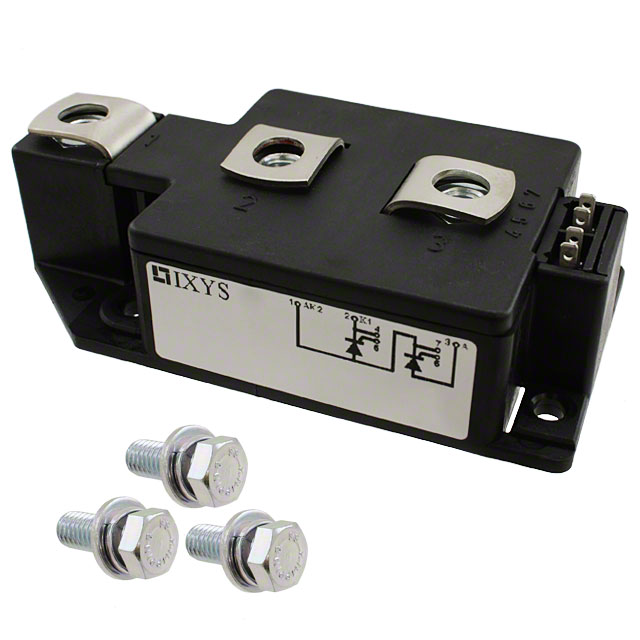

MCC220-16IO1

$81.65

Description：MOD THYRISTOR DUAL 1600V Y2-DCB
Series：-

SKU:fa1e5d3ba173 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOD THYRISTOR DUAL 1600V Y2-DCB
Series：-
Mfr：IXYS
Package：Box
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：1.6 kV
Current - On State (It (AV)) (Max)：250 A
Current - On State (It (RMS)) (Max)：400 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：8500A, 9000A
Operating Temperature：-40°C ~ 140°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Y2-DCB
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：150 mA
Current - Hold (Ih) (Max)：150 mA
Grade：-
Qualification：-

Download product information

MCC220-16IO1

Overview

The IXYS MCC220-16IO1 is a dual thyristor module rated for a repetitive peak reverse voltage of 1600 V and an average on-state current of 250 A at 85°C case temperature. It features a maximum RMS on-state current of 400 A and supports surge currents up to 9000 A for 8.3 ms. The device utilizes a direct copper bonded Al2O3 ceramic base plate with planar passivated chips, providing an isolation voltage of 3600 V~. Key electrical parameters include a gate trigger current of 150 mA, a holding current of 150 mA, and a peak on-state voltage of 1.53 V at 600 A. The module operates within a junction temperature range of -40°C to +140°C.

Feature Summary

Direct copper bonded Al2O3-ceramic base plate construction
Planar passivated chips for improved reliability
Keyed gate/cathode twin pins for secure connection
UL registered (E 72873) compliance

Applications

Motor control systems
Power converters
Heat and temperature control for industrial furnaces
Chemical process control
Lighting control circuits

Procurement Notes

Verify the specific suffix '16io1' corresponds to the 1600V rating when sourcing replacements. Confirm mounting torque specifications (M5: 2.5-5 Nm; M8: 12-15 Nm) match existing hardware. Ensure thermal interface materials are compatible with the Y2-DCB package style. Check for RoHS compliance status if required by local regulations.

Selection Notes

Select this module for applications requiring high current handling in a standard international package. Consider the 250A average current rating against actual load profiles and cooling conditions. Evaluate the 1600V blocking capability relative to system voltage spikes. Compare thermal resistance values against available heatsink solutions to ensure junction temperature limits are not exceeded during operation.

Part Context

This component belongs to the MCC 220 series of thyristor modules manufactured by IXYS. The series offers various voltage ratings from 800V to 1800V, with the '16' designation indicating the 1600V version. It shares the same physical footprint and thermal characteristics as other variants in the MCC 220 family, facilitating design flexibility across different voltage requirements.
