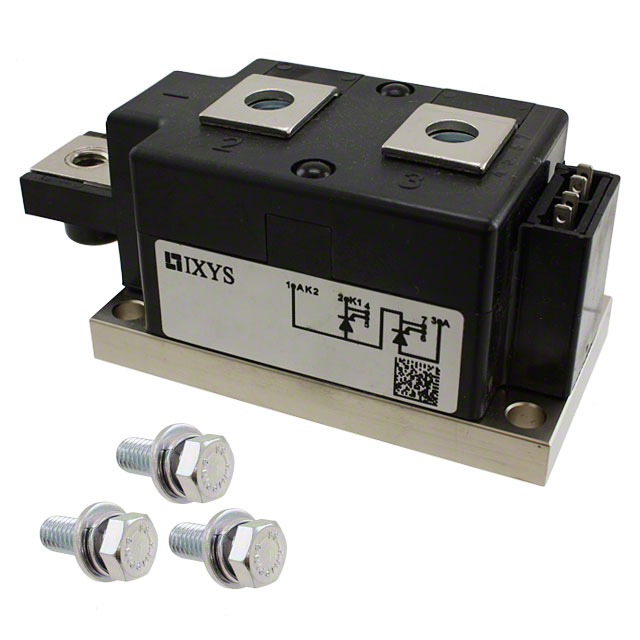

MCC224-20IO1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：MOD THYRISTOR DUAL 2000V Y1-CU
- Series：-
- Mfr：IXYS
- Package：Box
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：2 kV
- Current - On State (It (AV)) (Max)：240 A
- Current - On State (It (RMS)) (Max)：400 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：8000A, 8500A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Y1-CU
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：200 mA
- Grade：-
- Qualification：-
Download product information
Overview
The MCC224-20IO1 is a high voltage thyristor diode module manufactured by IXYS. It features an international standard package with a Direct Copper Bonded Al2O3-ceramic substrate on a copper base plate. The device utilizes planar passivated chips and provides an isolation voltage of 3600 V. Registered under UL E 72873, this component is designed for robust performance in demanding power electronics applications.
Feature Summary
- Direct Copper Bonded Al2O3-ceramic construction with copper base plate
- Planar passivated chip technology
- UL registered safety certification
Applications
- Motor control and soft starters
- Power converters
- Industrial furnace heat and temperature control
- Lighting control systems
- Solid state switches
Procurement Notes
Verify the specific datasheet version and electrical parameters against the manufacturer's official documentation before integration. Confirm that the 3600 V isolation rating and UL registration number match project requirements. Ensure thermal management solutions align with the module's Direct Copper Bonded structure specifications.
Selection Notes
Select this module for applications requiring high voltage isolation and reliable thermal cycling performance. The international standard package facilitates straightforward mounting compared to custom solutions. Evaluate the planar passivated chip characteristics against the specific voltage and current stresses expected in the target circuit design.
Part Context
This component belongs to the MCD series of high voltage thyristor diode modules from IXYS. It shares architectural similarities with other models like the MCD161 and MCD310 series, utilizing similar packaging and substrate technologies. The series is engineered for industrial power conversion environments.
Replacement Considerations
Cross-reference with MCD161-20IO1 or MCD310-22IO1 for potential functional equivalents within the same product family. Verify pinout compatibility and thermal interface dimensions before substituting.
