MCC310-12IO1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：THYRISTOR MODULE 1300V
- Series：-
- Mfr：IXYS
- Package：Bulk
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.2 kV
- Current - On State (It (AV)) (Max)：320 A
- Current - On State (It (RMS)) (Max)：500 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：9200A, 9800A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：150 mA
- Grade：-
- Qualification：-
Download product information
Overview

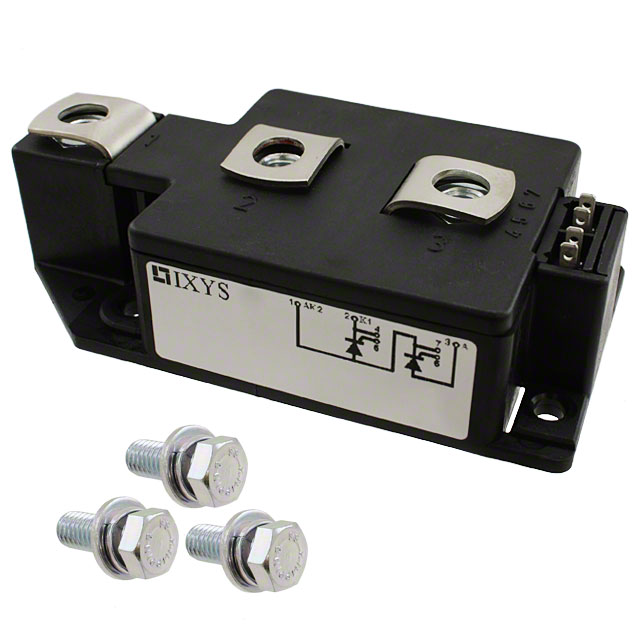

The IXYS MCC310-12IO1 is a thyristor/diode module featuring a 1200 V repetitive peak reverse voltage and a maximum average on-state current of 320 A. It utilizes a direct copper bonded Al2O3 ceramic base plate for thermal management and includes planar passivated chips. The device supports a surge current rating of 9800 A at 8.3 ms (60 Hz) and operates within a junction temperature range of -40°C to +140°C. Key electrical parameters include a gate trigger current of 150 mA, an isolation voltage of 3600 Vrms, and a typical peak on-state voltage of 1.32 V.
Feature Summary
- Features a keyed gate/cathode twin pin configuration for simplified connection.
- Incorporates a direct copper bonded Al2O3 ceramic base plate for improved thermal cycling performance.
- Provides high isolation voltage capability with UL registration.
Applications
- Motor control systems
- Power converters
- Industrial furnace heat and temperature control
- Lighting control circuits
Procurement Notes
Verify the specific ordering suffix against official IXYS documentation to ensure correct voltage and current ratings. Confirm mechanical mounting requirements, including M5 and M8 torque specifications, prior to integration. Cross-reference datasheet revision dates to validate test conditions and dimensional tolerances for your design.
Selection Notes
Select this module based on its 1200 V blocking capability and 320 A continuous current handling. Evaluate thermal resistance values against your heatsink design to maintain junction temperatures below 140°C. Ensure the gate drive circuit can supply the required 150 mA trigger current under all operating temperature conditions.
Part Context
This component belongs to the MCC310 series of thyristor modules manufactured by IXYS. The series offers various voltage ratings from 800 V to 2200 V while maintaining consistent current and package characteristics. It is designed for high-power industrial applications requiring robust semiconductor switching solutions.
Replacement Considerations
Consult official IXYS documentation for confirmed substitute part numbers within the MCC310 or MCD310 families. Verify that any alternative device matches the 1200 V rating, 320 A current capacity, and physical dimensions before implementation.
FAQ
What is the maximum surge current rating for the MCC310-12IO1?
The module has a surge current rating of 9800 A for an 8.3 ms duration at 60 Hz sine wave.
What is the isolation voltage specification?
The isolation voltage is rated at 3600 Vrms for 1 second.
What are the mounting torque requirements?
The recommended mounting torque for M5 screws is 2.5-5 Nm, and for M8 terminal connections, it is 12-15 Nm.
