MCC312-16IO1

Overview

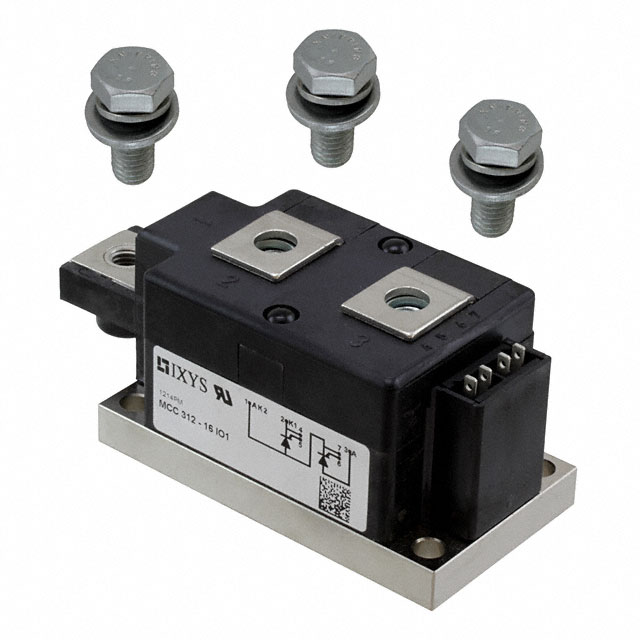

The IXYS MCC312-16IO1 is a dual thyristor module designed for high-power industrial applications. It features a Y1-CU package with screw mount installation and seven pins. The device supports a repetitive peak reverse voltage of 1600 V and an average on-state current of 320 A. Peak on-state voltage is rated at 1.32 V, while the surge current capacity reaches 10.1 kA. Gate trigger current is limited to 150 mA maximum, with a gate trigger voltage of 2 V. The component operates within a temperature range from -40°C to +140°C, ensuring reliability in demanding thermal environments.

Feature Summary

• Dual SCR configuration housed in a robust Y1-CU package for efficient power handling
• High surge current capability of 10.1 kA suitable for fault conditions
• Wide operating temperature range extending up to 140°C for industrial stability

Applications

• Industrial motor drives and frequency converters
• High-power rectifier circuits in energy conversion systems
• Welding equipment and heavy-duty power supplies

Procurement Notes

Verify the specific suffix and marking on the physical component against the datasheet to confirm the MCC312-16IO1 designation. Ensure that the Y1-CU package dimensions and pinout match the design requirements before integration. Check for RoHS compliance status as indicated in official documentation. Confirm thermal management solutions are adequate for the specified 140°C maximum junction temperature limit during operation.

Selection Notes

Select this module when a dual SCR configuration with 1600 V blocking voltage and 320 A continuous current is required. Compare the 1.32 V forward voltage drop against alternative devices to evaluate conduction losses. Consider the 10.1 kA surge rating for circuit protection coordination. Verify that the screw mount mechanical interface fits the available heatsink or chassis mounting points in the final assembly design.

Part Context

This component belongs to the IXYS MCC series of thyristor modules, which are engineered for high-current industrial power control. The series typically includes variants with different current ratings and voltage levels, all sharing similar packaging standards like the Y1-CU form factor. These modules are commonly used in applications requiring reliable phase control or rectification under harsh electrical conditions.

Replacement Considerations

Direct cross-compatibility with other manufacturers' parts requires careful verification of pinout, thermal resistance, and electrical parameters. Similar IXYS models in the MCC series may offer different current ratings but maintain compatible mounting styles. Always consult official substitution guides or engineering samples before replacing components in existing designs.
