MCD18126PER5

Overview

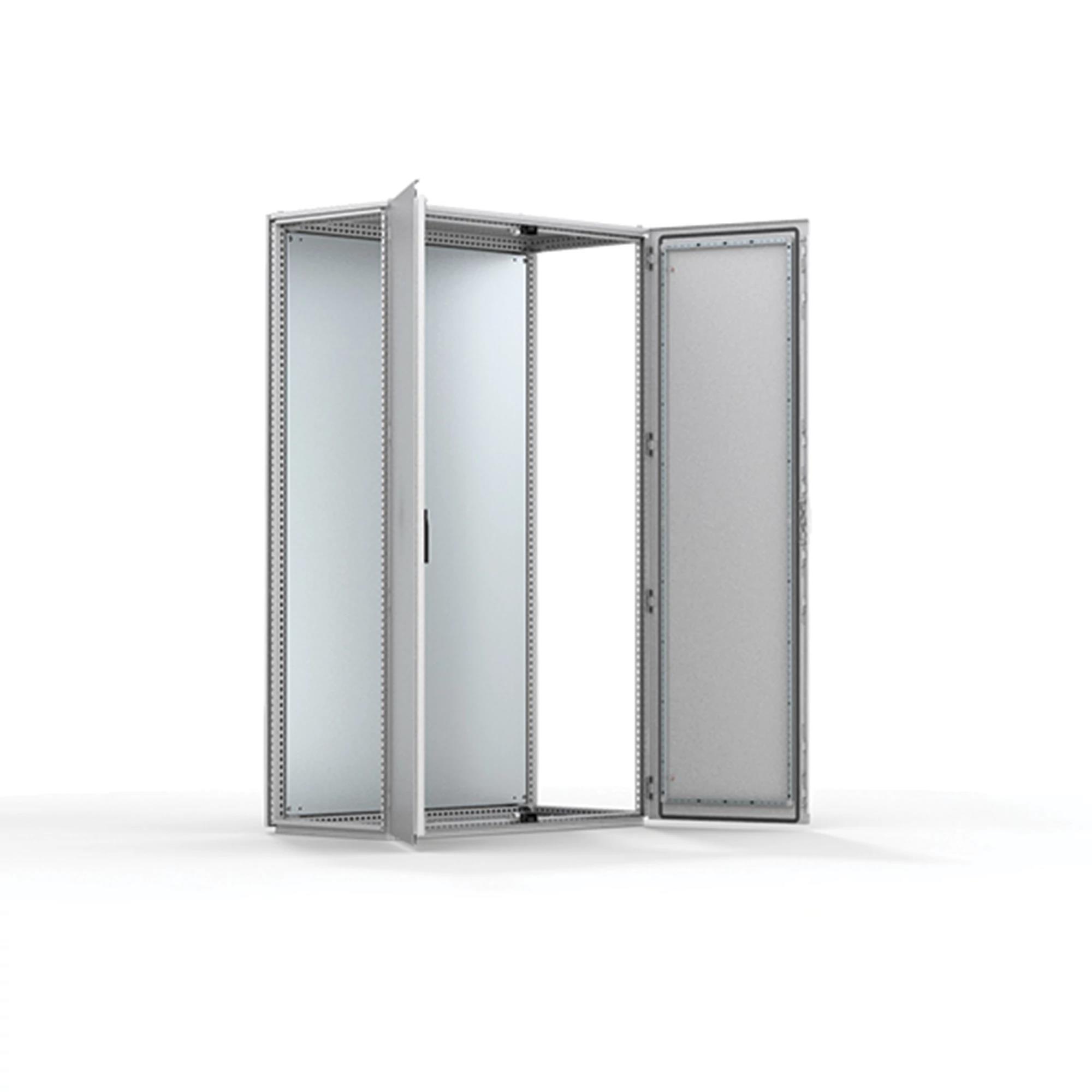

The MCD18126PER5 is a comb enclosure manufactured by Hoffman Enclosures, Inc. It features two doors and includes mounting plates. The unit is constructed from steel with a light gray finish. Dimensions are 70.866 inches in height, 47.244 inches in width, and 15.748 inches in depth (1800.00mm x 1200.00mm x 400.00mm). It holds IP55 and NEMA 12 ratings.

Feature Summary

• Combination enclosure design with dual doors
• Includes integrated mounting plates
• Steel construction with light gray coating
• Hinged door and removable side panel configuration

Applications

• Industrial control panel assembly
• Electrical equipment housing
• Factory automation systems
• Process control installations

Procurement Notes

Verify the exact part number suffix against official Hoffman documentation to confirm specific accessory inclusion. Ensure environmental rating requirements match IP55/NEMA 12 specifications for the intended installation site. Confirm dimensional clearance for the specified height and width measurements before ordering.

Selection Notes

Select this model when a two-door configuration with pre-installed mounting plates is required. The steel material provides structural durability for industrial environments. Verify that the internal volume accommodates the specific components to be housed within the 400mm depth constraint.

Part Context

This component belongs to the MCD series of comb enclosures from Hoffman Enclosures. These units are designed for modular integration into larger electrical distribution setups. The product line emphasizes standardized dimensions for compatibility with associated mounting hardware and accessories.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
