MCD255-16IO1

SCRs - Modules Overview

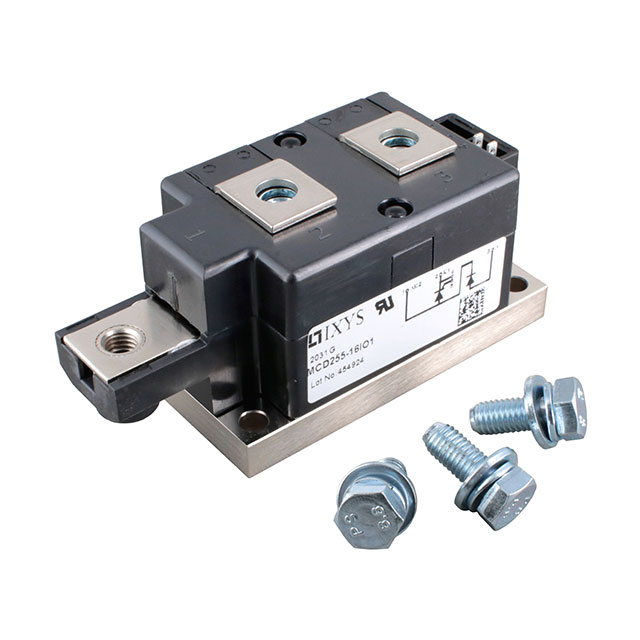

The MCD255-16IO1 is a thyristor module manufactured by IXYS, designed for high-power industrial applications. It features an international standard package with direct copper bonded Al2O3-ceramic and a copper base plate, utilizing planar passivated chips. The device has a repetitive peak reverse voltage of 1600 V and supports panel mounting. Key electrical parameters include a rated average on-state current of 130 A, a surge current rating of 8.6 kA, and a maximum gate trigger current of 150 mA. It operates within a temperature range of -40°C to 125°C.

SCRs - Modules Feature Summary

• Utilizes direct copper bonded Al2O3-ceramic construction with a copper base plate for efficient thermal management.
• Incorporates planar passivated chips to ensure robust performance in high-power environments.
• Adopts an international standard package design compatible with common panel mounting configurations.

SCRs - Modules Applications

• Industrial motor drives
• Power supply systems
• Welding equipment

SCRs - Modules Procurement Notes

Verify the specific manufacturer datasheet for the MCD255-16IO1 to confirm all electrical ratings and mechanical dimensions before integration. Ensure that the thermal interface materials and mounting hardware are compatible with the direct copper bonded ceramic structure. Cross-reference the pinout configuration with the official documentation to prevent installation errors. Confirm that the operating environment remains within the specified temperature limits to maintain device reliability and longevity.

SCRs - Modules Selection Notes

Select this component when a 1600 V blocking capability and 130 A continuous current handling are required in a compact panel-mount form factor. The international standard package facilitates easy replacement and integration into existing industrial architectures. Consider the thermal resistance characteristics of the copper base plate for heat sink design. Evaluate the surge current capacity against potential fault conditions in the target circuit to ensure adequate safety margins during transient events.

SCRs - Modules Part Context

This part belongs to the MCD series of thyristor modules from IXYS, which are engineered for demanding power electronics applications. The series emphasizes reliability through advanced packaging technologies like direct copper bonding. These modules are typically used in scenarios requiring high efficiency and robust thermal performance, serving as critical switching elements in various industrial power conversion systems.

SCRs - Modules Replacement Considerations

Check for equivalent models within the MCD series or other manufacturers offering similar international standard packages. Verify that substitute parts match the 1600 V voltage rating and 130 A current capacity. Ensure compatibility with the existing cooling solution due to the specific thermal requirements of the copper base plate design.
