MCEK1210TR47MHN

Fixed Inductors Overview

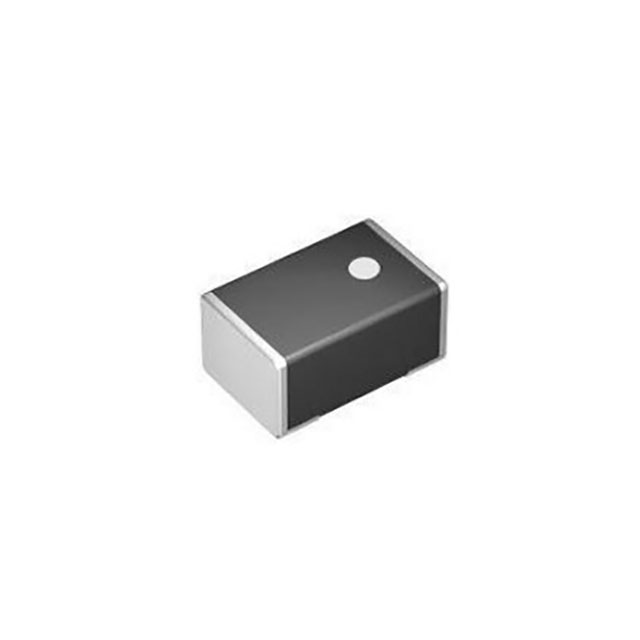

The MCEK1210TR47MHN is a multilayer power inductor from Taiyo Yuden, designed for surface-mount applications. It features an unshielded construction with a metal core and operates within a temperature range of -40°C to +125°C. The component provides an inductance of 470 nH with a tolerance of ±20%. It supports a maximum DC current of 1.6 A and a saturation current of 2.6 A. The maximum DC resistance is specified at 82 mΩ. The physical dimensions are 1.25 mm in length, 1.05 mm in width, and 0.5 mm in height, conforming to the 0504 (1210 metric) package.

Fixed Inductors Feature Summary

• Multilayer construction utilizing a metal core for stable performance
• Unshielded design suitable for general electronic equipment
• Surface-mount compatibility with standard terminals

Fixed Inductors Applications

• Power supply circuits
• Audio-visual equipment
• Office automation equipment
• Home electric appliances

Fixed Inductors Procurement Notes

Verify the specific datasheet version before procurement, as the manufacturer lists LSCNB1210EKTR47MB as a previous part number associated with this component. Confirm that the application does not require aviation-grade certification, as the documentation explicitly restricts use in such sectors. Ensure the ordering suffix matches the required packaging format, as options include reel, cut tape, and MouseReel configurations.

Fixed Inductors Selection Notes

Select this component when a low-profile 1210 footprint is required for power filtering. The 470 nH value and 1.6 A current rating suit moderate power handling needs. Consider the unshielded nature if electromagnetic interference sensitivity is a concern. Verify thermal requirements against the +125°C maximum operating limit. Compare against the LSCNB1210EKTR47MB if legacy compatibility is necessary.

Fixed Inductors Part Context

This part belongs to the MC series of power inductors by Taiyo Yuden, marketed under the MCOIL trademark. It is categorized under SMD power inductors with a multilayer core type. The product is intended for general electronic equipment rather than specialized industrial or automotive applications. The unit weight is approximately 29.5 mg.

Fixed Inductors Replacement Considerations

LSCNB1210EKTR47MB is documented as a previous part number for this component. LLCNB1210EKTR47MB is also listed as an alias. Consult the manufacturer for direct substitution confirmation.
