MCF18084R5

Overview

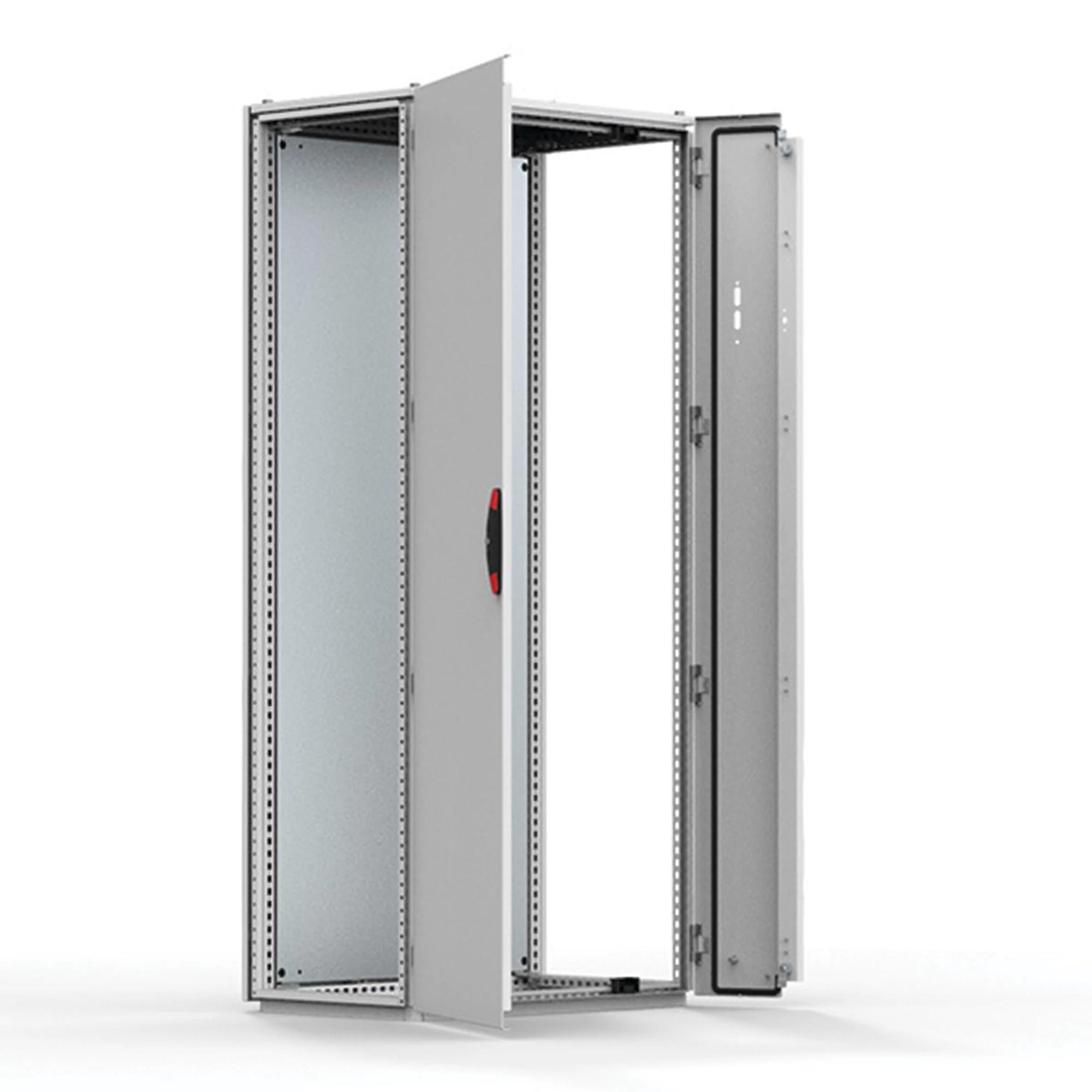

The MCF18084R5 is a floor-standing, combiner enclosure manufactured by nVent Hoffman. Constructed from mild steel with a powder-coated finish, it features a NEMA 12 rating and IP55 protection level. The unit measures 70.87 inches in height, 31.5 inches in width, and 15.75 inches in depth. It includes an integrated mounting plate and utilizes seam-welded reversed open profiles with a 25 mm hole pattern per DIN 43660 standards.

Feature Summary

• Floor-standing design with combiner capability for modular expansion
• Seam-welded construction using reversed open profiles with standardized 25 mm hole patterns
• Integrated mounting plate included for immediate component installation
• Powder-coated mild steel body providing corrosion resistance and durability

Applications

• Industrial electrical cabinet assembly
• Control panel integration
• Power distribution housing
• Automation system enclosures

Procurement Notes

Verify the specific configuration requirements against the manufacturer's current documentation to ensure compatibility with existing DIN rail systems and mounting hardware. Confirm that the mild steel material and powder-coated finish meet the environmental exposure standards of the intended installation site. Cross-reference the 25 mm hole pattern specifications with any pre-existing frame structures to guarantee proper alignment during assembly.

Selection Notes

Select this model when a robust, floor-mounted solution is required for high-density component arrangement. The mild steel construction offers superior structural integrity compared to plastic alternatives. Ensure the facility has adequate floor space and load-bearing capacity to support the unit's dimensions. This enclosure is suitable for environments requiring NEMA 12 protection against dust and dripping non-corrosive liquids.

Part Context

This product belongs to the nVent Hoffman line of industrial enclosures, designed for electrical installations. It serves as a primary housing for control systems, offering a standardized footprint for easy integration into larger rack or frame structures. The brand specializes in durable solutions for demanding industrial settings.

Replacement Considerations

MCS18084R5 is a confirmed substitute part number within the same product family.
