MCF8329A1IREER

Overview

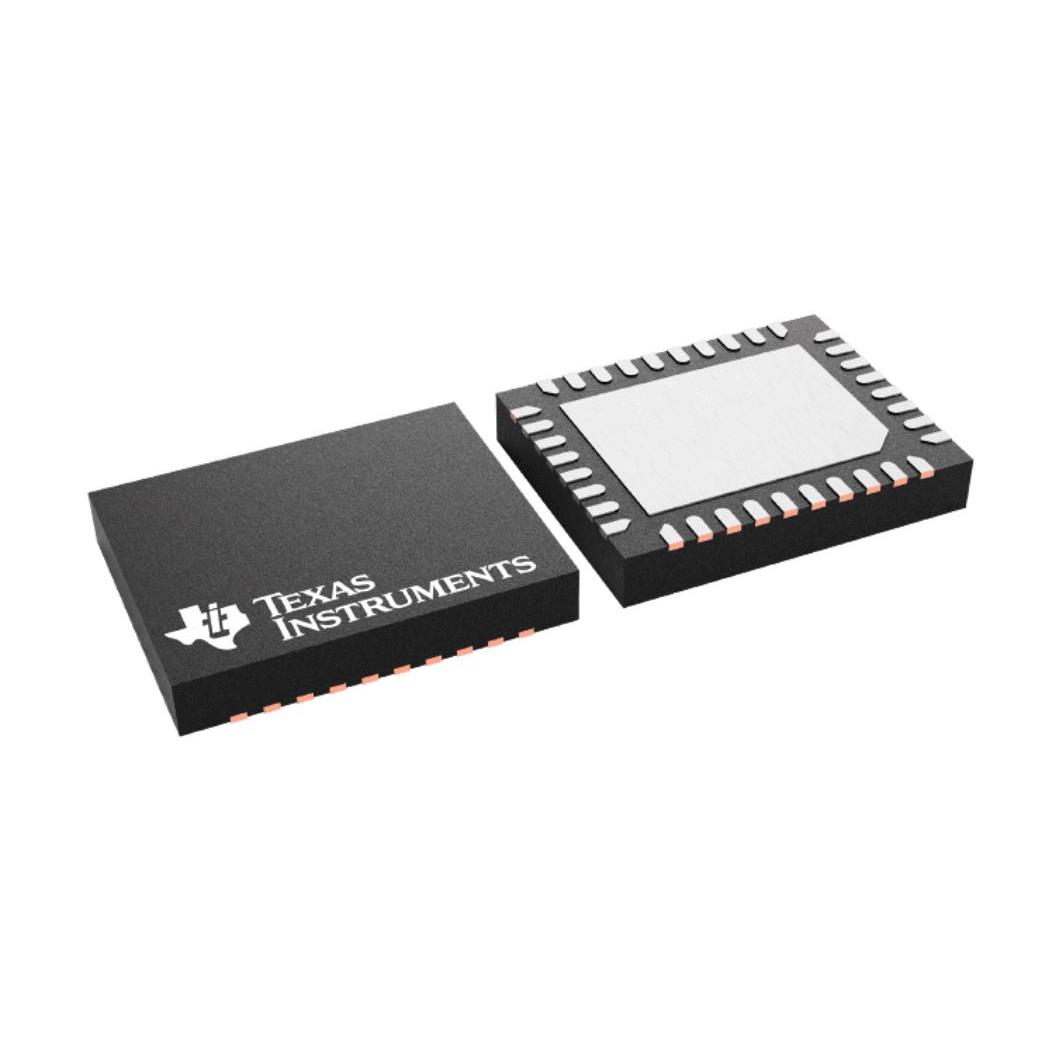

The MCF8329A1IREER is a three-phase BLDC gate driver from Texas Instruments designed for sensorless field-oriented control (FOC) of brushless DC or permanent magnet synchronous motors. It integrates three half-bridge drivers capable of driving high-side and low-side N-channel power MOSFETs using a bootstrap circuit with an internal charge pump. The device supports a wide input voltage range of 4.5V to 60V on a single supply. Key electrical parameters include peak source/sink currents of 1A/2A, a sleep mode current of 5µA maximum at 24V, and PWM frequency support up to 100kHz. It operates within a temperature range of -40°C to +125°C in a WQFN-36 package.

Feature Summary

• Integrates sensorless FOC algorithm for single-chip motor control without coding requirements
• Provides three half-bridge gate drivers with bootstrap architecture supporting 100% duty cycle via trickle charge pump
• Includes integrated current sensing amplifier with configurable gain options for precise motor regulation
• Offers multiple speed command inputs including PWM, analog voltage, frequency, and I2C interfaces

Applications

• Brushless DC motor modules
• Cordless vacuum cleaners
• HVAC blowers and ventilators
• Appliance fans and pumps
• Cordless gardening and power tools

Procurement Notes

Verify the specific suffix '1IREER' against the manufacturer datasheet to confirm pinout compatibility and functional configuration. Ensure the ordering part number matches the required automotive or industrial grade specifications. Cross-reference the package type WQFN-36 with PCB footprint requirements. Confirm RoHS compliance status if environmental regulations apply to the end product assembly process.

Selection Notes

Select this component when designing systems requiring sensorless FOC for BLDC or PMSM applications. It is suitable for single-supply operations between 4.5V and 60V. Consider its integrated current sensing and protection features for simplified designs. Evaluate the WQFN-36 package size against available board space. Verify that the required speed control interface aligns with available system signals such as PWM or I2C.

Part Context

This device belongs to the MCF8329 family of three-phase BLDC gate drivers. It provides a complete solution for driving motors without external microcontrollers for basic control loops. The family includes variants optimized for different control algorithms and packaging needs. It serves as a key component in modern motor drive architectures aiming to reduce bill of materials and design complexity.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
