MCI0603TG10NHHBPDG

Fixed Inductors Overview

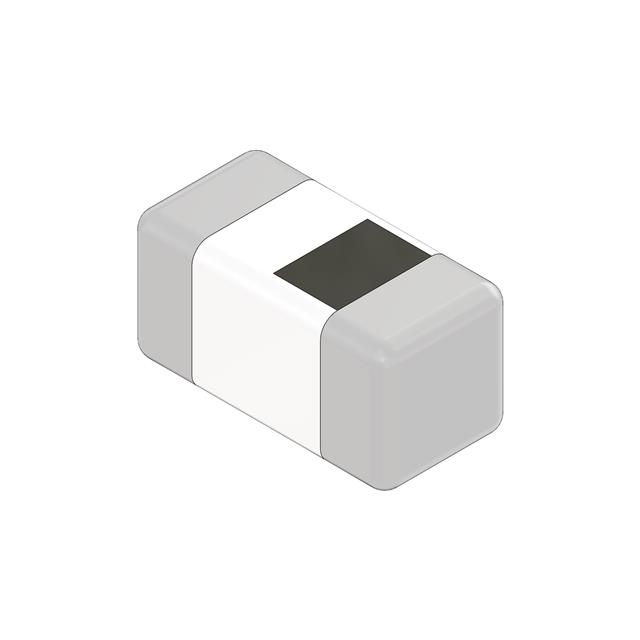

The MCI0603TG10NHHBPDG is a multilayer ceramic RF inductor manufactured by INPAQ Technology Co., Ltd. It features a compact EIA 0603 surface-mount package with dimensions of 1.6 mm length, 0.8 mm width, and 0.7 mm height. The component provides an inductance value of 10 nH with a tolerance of ±3%. It is designed for high-frequency applications, supporting operational ranges up to 20 GHz. The device operates within a temperature range of -55 °C to +125 °C and complies with RoHS standards.

Fixed Inductors Feature Summary

• Utilizes particular ceramic material and coil structure to support high-frequency application ranges up to 20 GHz.
• Features a small size and low profile suitable for space-constrained surface-mount designs.
• Provides stable inductance performance with tight tolerance for precision RF circuits.

Fixed Inductors Applications

• High-frequency RF circuits requiring precise inductance values.
• Compact consumer electronics with limited board space.
• Communication equipment operating in the GHz frequency range.

Fixed Inductors Procurement Notes

Verify the specific suffix 'DG' against the manufacturer's current datasheet to confirm lead-free status or packaging variations. Ensure the ordering code matches the exact 10 nH inductance and ±3% tolerance requirements. Cross-reference the EIA 0603 footprint dimensions during PCB layout finalization to guarantee compatibility with automated assembly processes.

Fixed Inductors Selection Notes

Select this component when designing circuits that require inductance values in the nanohenry range at frequencies approaching 20 GHz. The 0603 package offers a balance between component stability and board real estate efficiency. Consider the ±3% tolerance if the application demands high precision in impedance matching networks or resonant circuits where standard tolerances may introduce significant deviation.

Fixed Inductors Part Context

This part belongs to INPAQ's multilayer ceramic inductor series, which utilizes proprietary ceramic materials and coil structures to achieve high-frequency performance. These components are distinct from ferrite beads, focusing on inductive reactance rather than resistive noise suppression. The series supports various sizes, with the 0603 variant providing a compact solution for modern miniaturized electronic devices.

Fixed Inductors Replacement Considerations

The MCI0603TM10NHHBPDG and MCI0603TG10NHHBPDG are qualified equivalents based on matching electrical characteristics. Verify that the substitute maintains the same 10 nH inductance and ±3% tolerance. Confirm that the physical dimensions and terminal configurations remain identical to ensure seamless integration into existing PCB layouts without mechanical interference.
