MCI0603TM1N0BHBPDG

Fixed Inductors Overview

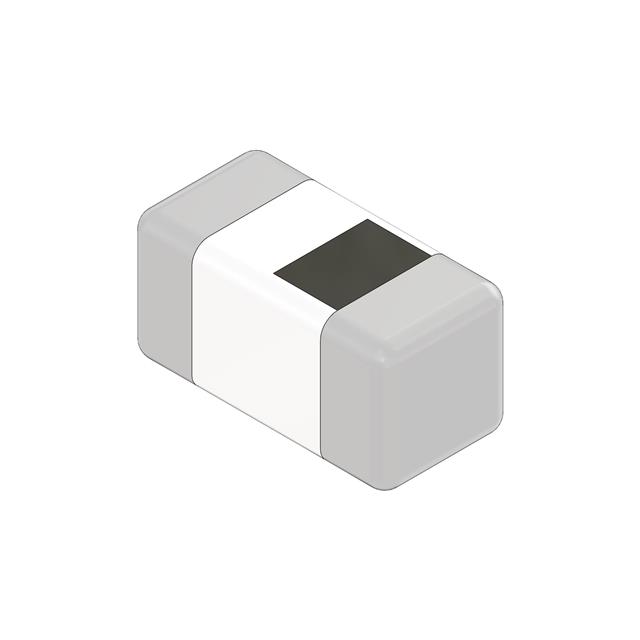

The MCI0603TM1N0BHBPDG is an unshielded multilayer inductor manufactured by INPAQ Technology Co., Ltd. It features a nominal inductance of 1 nH with a maximum DC resistance of 100 mOhm and a rated current of 750 mA. The component utilizes a 0201 (0603 Metric) surface-mount package, ensuring a compact footprint suitable for high-density circuit designs.

Fixed Inductors Feature Summary

• Unshielded multilayer construction designed for RF applications
• Compact 0201 surface-mount form factor
• Low DC resistance for efficient power handling

Fixed Inductors Applications

• RF circuits requiring small inductance values
• High-frequency signal processing
• Mobile communication devices

Fixed Inductors Procurement Notes

Verify the specific suffix BHBPDG against official manufacturer documentation to confirm exact tolerance and packaging specifications. Ensure compatibility with standard reflow soldering profiles for 0201 components. Cross-reference datasheets for thermal management requirements during operation.

Fixed Inductors Selection Notes

Select this component for applications demanding minimal inductance in ultra-compact spaces. Evaluate the 750 mA current rating against peak load requirements. Consider the unshielded nature regarding potential electromagnetic interference in dense layouts compared to shielded alternatives.

Fixed Inductors Part Context

This part belongs to INPAQ's multilayer ceramic RF inductor series. These components are engineered for high-frequency performance using specialized ceramic materials and coil structures. The series supports various sizes to meet diverse space constraints in modern electronics.

Fixed Inductors Replacement Considerations

Check for direct substitutes within the MCI0603T series or equivalent 1 nH 0201 inductors from other manufacturers. Verify that replacement parts match the 100 mOhm DCR and 750 mA current ratings to maintain circuit integrity.
