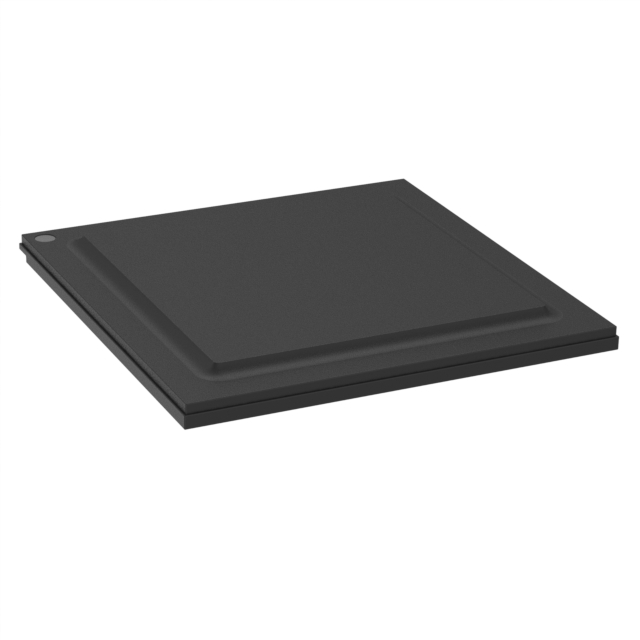

MCIMX6D4AVT10AC
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC MPU I.MX6D 1.0GHZ 624FCBGA
- Series：i.MX6D
- Mfr：NXP USA Inc.
- Package：Tray,Tray
- Core Processor：ARM® Cortex®-A9
- Number of Cores/Bus Width：2 Core, 32-Bit
- Speed：1.0GHz
- Co-Processors/DSP：Multimedia; NEON™ SIMD
- RAM Controllers：LPDDR2, LVDDR3, DDR3
- Graphics Acceleration：Yes
- Display & Interface Controllers：Keypad, LCD
- Ethernet：10/100/1000Mbps (1)
- SATA：SATA 3Gbps (1)
- USB：USB 2.0 + PHY (4)
- Voltage - I/O：1.8V, 2.5V, 2.8V, 3.3V
- Operating Temperature：-40°C ~ 125°C (TJ)
- Security Features：ARM TZ, Boot Security, Cryptography, RTIC, Secure Fusebox, Secure JTAG, Secure Memory, Secure RTC, Tamper Detection
- Mounting Type：Surface Mount
- Package / Case：624-FBGA, FCBGA
- Supplier Device Package：624-FCBGA (21x21)
- Additional Interfaces：CAN, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, UART
Download product information
Overview
The MCIMX6D4AVT10AC is a 32-bit i.MX 6Dual multimedia application processor featuring two ARM Cortex-A9 cores operating at 852 MHz. It utilizes an FCPBGA-624 package with a 21 x 21 mm footprint and 0.8 mm pitch. The device supports industrial temperature ranges from -40°C to +125°C and includes integrated VPU, GPU, and security modules.
Feature Summary
- Dual-core ARM Cortex-A9 MPCore platform with NEON MPE co-processor
- Integrated hardware accelerators for video processing and graphics rendering
- Advanced security features including TrustZone and Cryptographic Acceleration Module
- Flexible interface connectivity supporting multiple display and camera standards
Applications
- Industrial automation systems
- Automotive infotainment units
- High-end consumer electronics
Procurement Notes
Verify the specific suffix 'A' indicates Rev 1.2 silicon revision and 'C' denotes Industrial temperature grade. Confirm the 'VT' suffix corresponds to the lidded FCPBGA package. Ensure compatibility with the IMX6DQIEC datasheet for electrical specifications.
Selection Notes
Select this part for applications requiring dual-core performance within an industrial temperature range. Compare against Quad-core variants if higher throughput is needed. Verify memory interface requirements for DDR3 or LPDDR2 support.
Part Context
This component belongs to the NXP i.MX 6Dual/6Quad family of processors designed for multimedia applications. It shares architectural similarities with other parts in the series but differs in core count and temperature rating.
Replacement Considerations
MCIMX6D7CVT08AC
FAQ
What is the maximum operating temperature?
The maximum operating temperature is +125°C.
Does this processor include a Video Processing Unit?
Yes, it includes an integrated VPU.
