MCIMX6D5EYM10AD

Overview

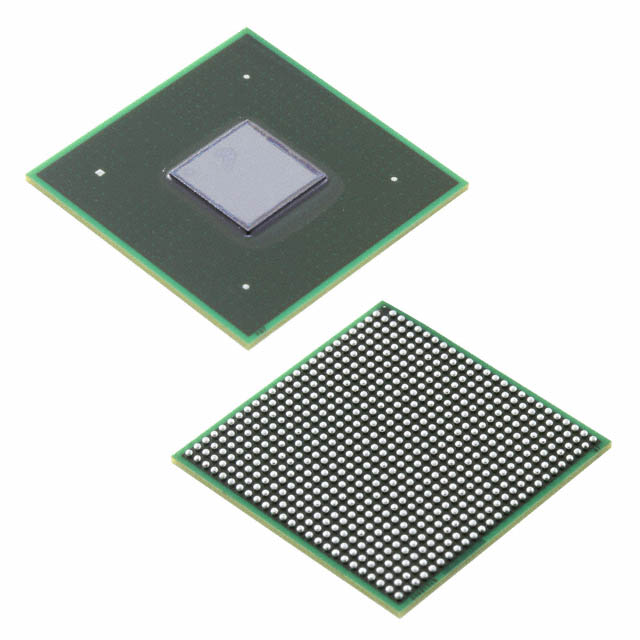

The MCIMX6D5EYM10AD is an i.MX 6Dual microprocessor from NXP Semiconductors, featuring two Arm Cortex-A9 cores operating at a maximum frequency of 1 GHz. It utilizes a 32-bit data bus and includes 32 kB L1 instruction and data caches per core, alongside a shared 1 MB L2 cache. The device supports DDR3, DDR3L, and LPDDR2 memory types via a 64-bit interface. Operating within a temperature range of -20°C to +105°C, it employs a 624-ball FCPBGA package measuring 21 x 21 mm with a 0.8 mm pitch.

Feature Summary

• Integrated multimedia processing capabilities including hardware video codecs and image processing units
• Advanced security features such as ARM TrustZone, High Assurance Boot, and cryptographic acceleration
• Flexible connectivity supporting Gigabit Ethernet, USB OTG, PCIe, and multiple display interfaces

Applications

• Industrial products requiring robust performance and extended temperature operation
• Consumer electronics utilizing multimedia and graphics acceleration
• Infotainment systems leveraging integrated audio and video processing

Procurement Notes

Verify the specific datasheet corresponding to the suffix 'D', which indicates commercial temperature grade (-20°C to +105°C). Ensure compatibility with the 624-ball FCPBGA footprint during PCB design. Confirm that the required silicon revision matches the ordering information for mass production availability. Cross-reference signal naming conventions if migrating from older documentation versions.

Selection Notes

Select this component when dual-core processing at 1 GHz is required alongside dedicated multimedia accelerators. Consider the integrated power management and DVFS support for efficiency needs. Evaluate the extensive peripheral set, including SATA, CAN, and multiple serial interfaces, against system connectivity requirements before finalizing the architecture.

Part Context

This part belongs to the i.MX 6Dual/6Quad family designed for industrial and consumer applications. It shares architectural similarities with other members like the MCIMX6D5EYM10AC but differs in temperature rating and qualification level. The series emphasizes low power consumption while delivering high-performance multimedia processing through specialized hardware accelerators.

Replacement Considerations

MCIMX6D5EYM10AE is listed as a direct replacement option.
