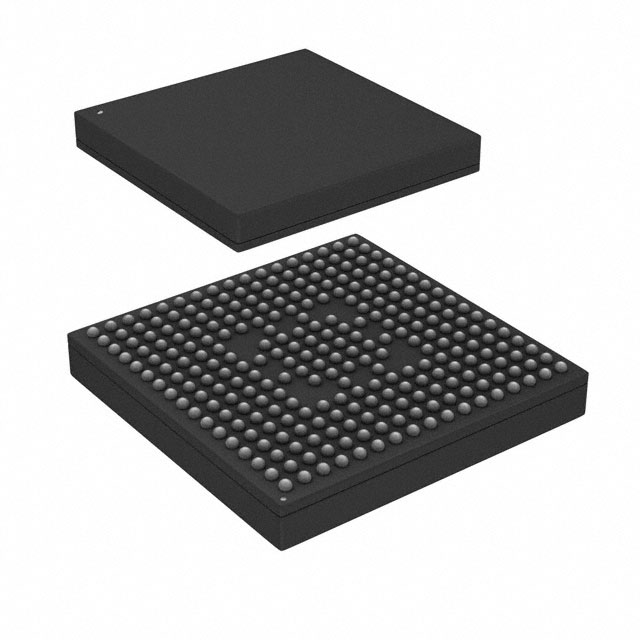

MCIMX6G3DVK05AB

$11.65

Description：IC MPU I.MX6UL 528MHZ 272MAPBGA
Series：i.MX6UL
Mfr：NXP USA Inc.
Package：Tray,Tray

SKU:553f64a34f83 Category: Microprocessors Brand: NXP USA Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC MPU I.MX6UL 528MHZ 272MAPBGA
Series：i.MX6UL
Mfr：NXP USA Inc.
Package：Tray,Tray
Core Processor：ARM® Cortex®-A7
Number of Cores/Bus Width：1 Core, 32-Bit
Speed：528MHz
Co-Processors/DSP：Multimedia; NEON™ SIMD
RAM Controllers：LPDDR2, DDR3, DDR3L
Graphics Acceleration：No
Display & Interface Controllers：LCD, LVDS
Ethernet：10/100Mbps (2)
SATA：-
USB：USB 2.0 + PHY (2)
Voltage - I/O：1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 2.8V, 3.3V
Operating Temperature：0°C ~ 95°C (TJ)
Security Features：ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS
Mounting Type：Surface Mount
Package / Case：272-LFBGA
Supplier Device Package：272-MAPBGA (9x9)
Additional Interfaces：CAN, EBI/EMI, I2C, I2S, MMC/SD/SDIO, QSPI, SAI, SPI, SSI, S/PDIF, UART
Grade：-
Qualification：-

Download product information

MCIMX6G3DVK05AB

Overview

The MCIMX6G3DVK05AB is a single-core ARM Cortex-A7 application processor operating at 528 MHz, belonging to the i.MX 6UltraLite family. It features a 128 KB L2 unified cache and supports DDR3, DDR3L, LPDDR2, NAND, NOR, and Quad SPI memory interfaces. The device includes two USB 2.0 OTG controllers with PHYs, two Ethernet MACs, two FlexCAN ports, and parallel LCD/CSI interfaces. Packaged in a 9x9 mm BGA with 0.5 mm pitch, it operates within a commercial temperature range of 0°C to +95°C.

Feature Summary

Integrated power management module with internal linear regulators
Hardware security acceleration including CAAM and TrustZone
Multimedia processing via NEON MPE and Pixel Processing Pipeline
Flexible connectivity supporting multiple serial and parallel protocols

Applications

Electronics Point-of-Sale devices
IoT Gateways
Access control panels
Smart appliances

Procurement Notes

Verify the specific suffix 'VK' indicates the 9x9 mm package variant. Confirm the 'D' junction temperature rating matches the required commercial operating environment. Ensure the silicon revision aligns with design requirements. Cross-reference the ordering information table for exact peripheral availability.

Selection Notes

Select this part for applications requiring integrated dual Ethernet and CAN interfaces. The 9x9 mm package offers a compact footprint suitable for space-constrained consumer electronics. Verify that the 528 MHz frequency meets performance needs compared to higher-speed variants.

Part Context

This component is part of the NXP i.MX 6UltraLite series, designed for low-power consumer applications. It shares architectural similarities with industrial and automotive grades but is optimized for commercial temperature ranges. The G3 designation indicates specific peripheral configurations including dual Ethernet and CAN controllers.
