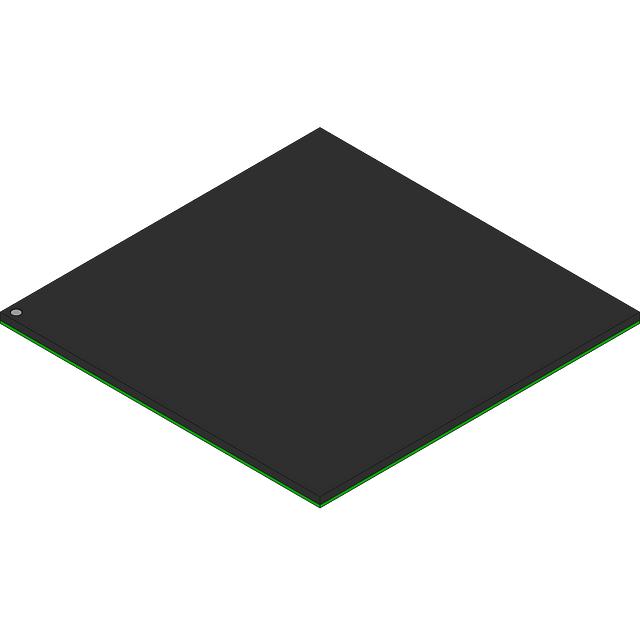

MCIMX6L2DVN10AA

Overview

The MCIMX6L2DVN10AA is a microprocessor unit belonging to the i.MX 6SoloX series, manufactured by NXP Semiconductors. It features a heterogeneous dual-core architecture comprising one ARM Cortex-A9 core and one ARM Cortex-M4 core. The Cortex-A9 operates at a maximum frequency of 1 GHz, while the Cortex-M4 runs up to 200 MHz. The device includes 256 KB of L2 cache, 32 KB instruction and data caches for the A9, and 16 KB instruction and data caches for the M4. It supports DDR3-800, LPDDR2-800, NAND, and NOR memory interfaces.

Feature Summary

• Heterogeneous multi-core processing with separate real-time and application cores
• Integrated Vivante GC400T GPU supporting OpenGL ES 2.0
• Advanced hardware security features including secure boot and tamper detection
• Comprehensive multimedia acceleration with NEON SIMD and video codecs

Applications

• Smart home IoT gateways
• Automotive infotainment systems
• Industrial control panels
• Multimedia consumer devices

Procurement Notes

Verify the manufacturer designation as NXP Semiconductors, as Freescale was acquired in 2015. Confirm the specific suffix 'DVN10AA' matches the required package (432-MAPBGA) and temperature range. Ensure compatibility with the recommended PMICs such as MMPF0100 or MMPF0200 for proper power sequencing and system stability.

Selection Notes

Select this component when a combination of high-performance application processing and deterministic real-time control is required within a single chip. The Cortex-M4 handles low-latency tasks while the Cortex-A9 manages complex operating systems. Consider the integrated security modules if the deployment environment requires robust protection against physical or software attacks.

Part Context

This processor is part of the i.MX 6 family, designed for applications requiring significant multimedia capabilities alongside connectivity. The SoloX variant specifically targets cost-sensitive yet feature-rich markets like smart displays and connected appliances, offering a balance between performance and power efficiency through its dual-core design.

Replacement Considerations

MCIMX6SL2DVN10AA

FAQ

What is the primary advantage of the heterogeneous core architecture?

It allows the separation of real-time tasks on the Cortex-M4 from general-purpose application processing on the Cortex-A9, ensuring system responsiveness and security.

Does this processor support hardware-accelerated video decoding?

Yes, it includes dedicated multimedia accelerators capable of handling video decoding and encoding tasks efficiently.
