MCIMX6L8DVN10AA

Overview

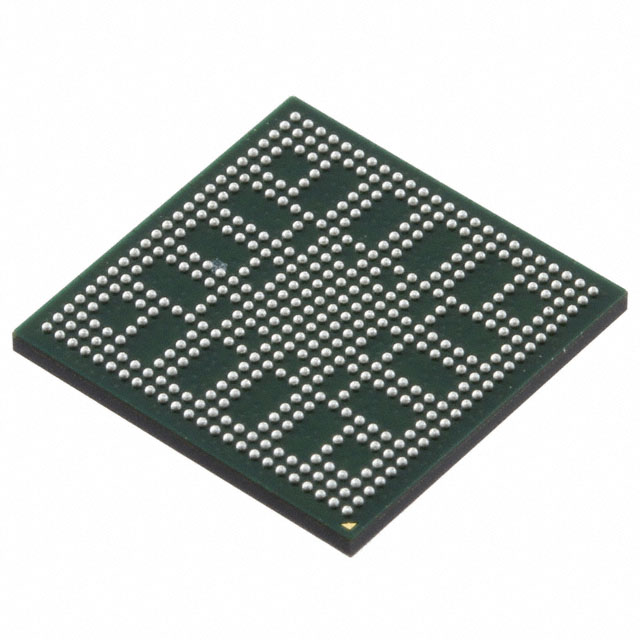

The MCIMX6L8DVN10AA is an i.MX 6SoloLite applications processor featuring a single ARM Cortex-A9 core operating at 1.0 GHz. It includes Vivante GC355 and GC320 GPUs, an EPD controller, and integrated power management. The device supports DDR3-800 and LPDDR2-800 memory interfaces via a 32-bit bus. Connectivity options include three USB 2.0 ports, 10/100 Mbps Ethernet, four eCSPI, five UARTs, and three I2C interfaces. It utilizes a 432-ball MAPBGA package measuring 13x13 mm with a 0.5 mm pitch.

Feature Summary

• Integrated electronic paper display controller supporting E Ink color and monochrome panels
• Hardware-accelerated multimedia performance with NEON MPE co-processor and SDMA controller
• Advanced security features including ARM TrustZone, High Assurance Boot, and tamper detection
• Integrated linear regulators for simplified system power management structure

Applications

• Color and monochrome eReaders
• Entry level tablets
• Barcode scanners

Procurement Notes

Verify the specific silicon revision and fuse configuration against the latest NXP documentation before integration. Confirm that the ordering suffix corresponds to the required GPU and EPDC enablement state. Ensure compatibility with supported companion PMICs such as MMPF0100 or PF3000. Check for any design-in notices or errata related to the 1.0 GHz operating frequency.

Selection Notes

Select this part when a single-core solution with dedicated EPD support is required. Compare against MCIMX6L7DVN10AA if GPU acceleration is not needed. Consider temperature grades and package availability for mass production. Verify memory interface requirements against DDR3-800 or LPDDR2-800 constraints defined in the electrical characteristics section.

Part Context

This component belongs to the i.MX 6SoloLite family, designed for consumer products requiring low power consumption and high performance. It shares architectural similarities with other i.MX 6 series processors but focuses on cost-effective multimedia applications. The device integrates multiple peripherals to reduce external component count.

Replacement Considerations

MCIMX6L8DVN10AB and MCIMX6L8DVN10AC are alternative orderable part numbers within the same speed grade and package type.
