MCIMX6S1AVM08AC

Overview

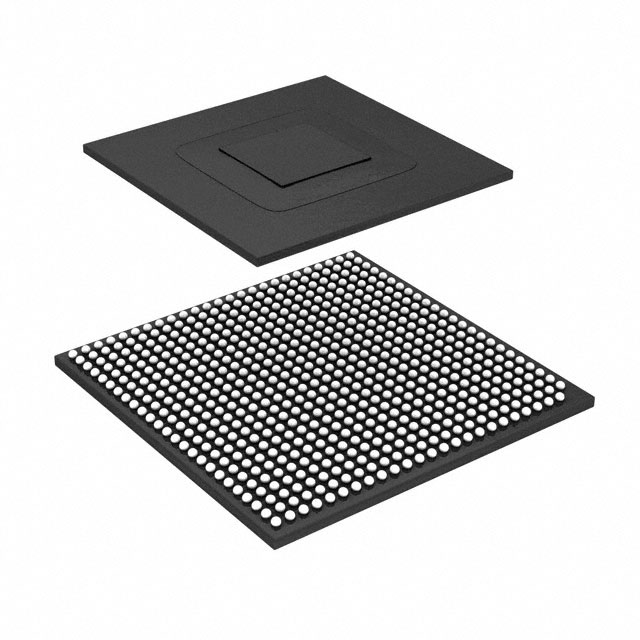

The MCIMX6S1AVM08AC is a single-core i.MX 6Solo application processor featuring an ARM Cortex-A9 core operating at 800 MHz. It utilizes a 32-bit data bus and includes 32 KB L1 instruction and data caches, alongside a 512 KB unified L2 cache. The device supports DDR3, DDR3L, and LPDDR2-800 memory interfaces with 32-bit width. Operating voltage is 1.5 V, with I/O levels ranging from 1.65 V to 3.6 V. It functions within a temperature range of -40°C to +125°C and is housed in a 21x21 mm MAPBGA package with 0.8 mm pitch.

Feature Summary

• Integrates a single ARM Cortex-A9 MPCore platform with TrustZone security support.
• Includes hardware multimedia accelerators such as the Video Processing Unit (VPU) and PiXel Processing Pipeline (PXP).
• Features advanced security mechanisms including CAAM, CSU, and Advanced High Assurance Boot (A-HAB).
• Provides flexible display connectivity supporting parallel RGB, LVDS, HDMI 1.4, MIPI DSI, and EPDC.

Applications

• Automotive infotainment systems
• Web and multimedia tablets
• Color eReaders
• IP TV set-top boxes
• Human Machine Interfaces (HMI)

Procurement Notes

Verify the specific silicon revision suffix 'C' against current NXP documentation to ensure compatibility with required firmware and errata. Confirm that the automotive temperature grade (-40°C to +125°C) aligns with the target system's environmental specifications. Cross-reference the ordering information table in the IMX6SDLCEC datasheet to validate the exact feature set enabled for this part number.

Selection Notes

Select this component for applications requiring a single high-performance core with robust multimedia capabilities and automotive-grade reliability. Ensure the design accommodates the 32-bit DDR interface requirements and provides adequate thermal management for the specified junction temperature range. Verify peripheral availability, as some interfaces may be multiplexed or unavailable depending on the specific configuration options defined by the part number.

Part Context

This processor belongs to the i.MX 6Solo/6DualLite family, designed for consumer and industrial products. It represents a cost-effective solution optimized for low power consumption while delivering high performance through dynamic voltage and frequency scaling. The series integrates advanced graphics and video processing units to handle complex multimedia tasks efficiently.

Replacement Considerations

MCIMX6S1AVM08AD
