MCIMX7S5EVK08SC

Overview

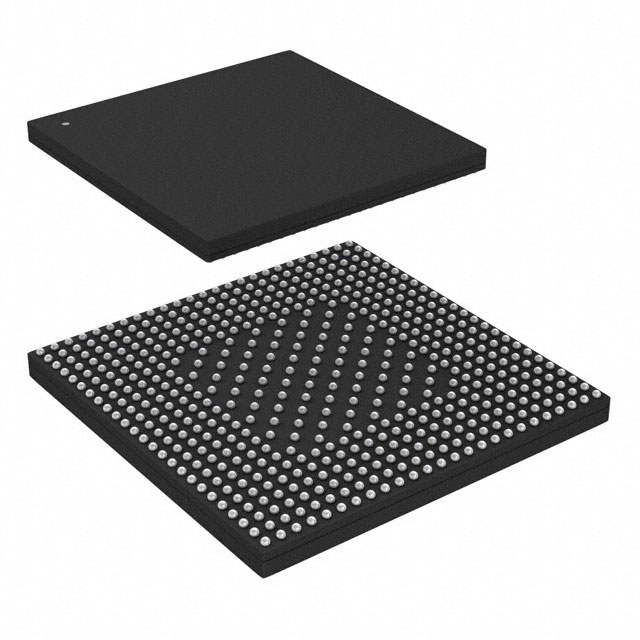

The MCIMX7S5EVK08SC is an i.MX 7Solo microprocessor featuring a heterogeneous multi-core architecture with one ARM Cortex-A7 core and one ARM Cortex-M4 core. It operates at a frequency of 800 MHz and utilizes a 32-bit processing interface. The component is housed in a 488-TFBGA package measuring 12x12 mm. It supports external memory types including DDR3, DDR3L, LPDDR2, and LPDDR3, alongside flash storage options such as NAND, eMMC, and eSD.

Feature Summary

• Heterogeneous dual-core configuration combining Cortex-A7 and Cortex-M4 processors
• Integrated single Gigabit Ethernet controller supporting AVB
• Support for parallel RGB and MIPI DSI display interfaces
• Comprehensive communication ports including USB, SDIO, I2C, SAI, UART, and SPI

Applications

• Interconnected IoT devices requiring low power consumption
• Industrial control systems with mixed real-time and application processing needs
• Portable consumer electronics demanding extended battery life
• Smart home hubs and gateway devices

Procurement Notes

Verify the specific silicon revision and mask set when ordering, as errata may apply to certain manufacturing batches. Confirm that the TFBGA-488 package dimensions align with your PCB footprint design. Ensure compatibility with the required memory controllers (DDR3/LPDDR3) for your system architecture before finalizing procurement.

Selection Notes

Select this component when a balance between high-performance application processing and efficient real-time control is required within a single chip. It is suitable for designs needing integrated connectivity features like Gigabit Ethernet without external controllers. Consider the 800 MHz clock speed sufficient for your graphical or computational workload requirements.

Part Context

This part belongs to the NXP i.MX 7Solo series, designed for the growing market of interconnected devices. It represents a shift towards highly integrated, low-power solutions that combine advanced Arm cores with extensive peripheral support. The series targets applications where space and power constraints are critical but performance remains a priority.

Replacement Considerations

Check for direct pin-compatible upgrades within the i.MX 7Solo family, such as variants with different clock speeds or memory support. Verify if newer silicon revisions offer improved errata coverage or enhanced security features compared to the current batch.
