MCL0606FRD1GR1T

LED Indication - Discrete Overview

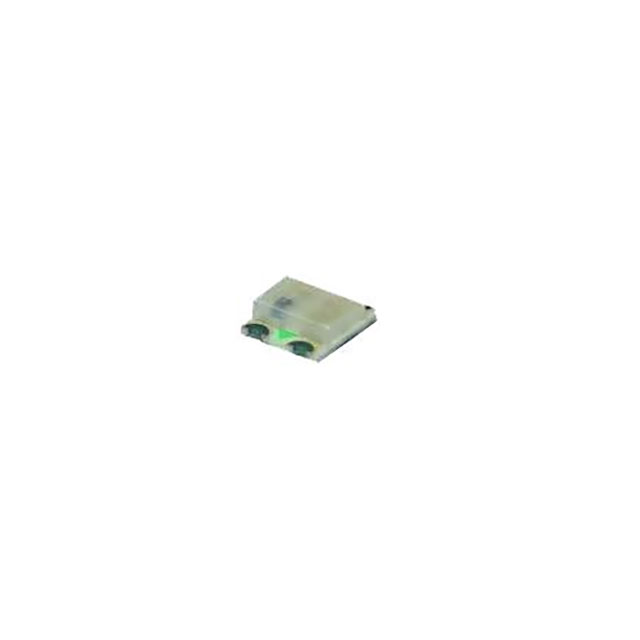

The MCL0606FRD1GR1T is a multi-color LED component manufactured by Venkel. It features a flat lens design and utilizes the 0606 package form factor. The device operates within a temperature range of -40°C to +85°C. Key optical characteristics include dominant wavelengths of 574nm and 630nm, with a viewing angle of 130 degrees.

LED Indication - Discrete Feature Summary

• Multi-color emission capability
• Flat lens optical design
• Wide viewing angle

LED Indication - Discrete Applications

• Indicator lighting
• Status signaling
• Display illumination

LED Indication - Discrete Procurement Notes

Verify the specific color combination and binning requirements against project specifications before ordering. Confirm that the 0606 footprint matches the PCB layout. Ensure thermal management strategies align with the specified operating temperature range for reliable long-term performance in the final assembly.

LED Indication - Discrete Selection Notes

Select this component when a compact multi-color solution is required. The 130-degree viewing angle provides broad visibility. The flat lens design aids in uniform light distribution. Verify compatibility with standard surface mount reflow processes during the design phase.

LED Indication - Discrete Part Context

This part belongs to Venkel's surface mount LED portfolio. It complements other passive components like resistors and capacitors in mixed-signal circuit designs. The 0606 size offers space efficiency compared to larger packages while maintaining adequate optical output for general indication tasks.

LED Indication - Discrete Replacement Considerations

No public substitute part numbers are documented. Direct replacement requires matching the 0606 package dimensions, pin configuration, and electrical characteristics. Verify optical intensity and wavelength tolerances to ensure consistent visual performance in the application.
