MCLA1608V2-6R8-R

Fixed Inductors Overview

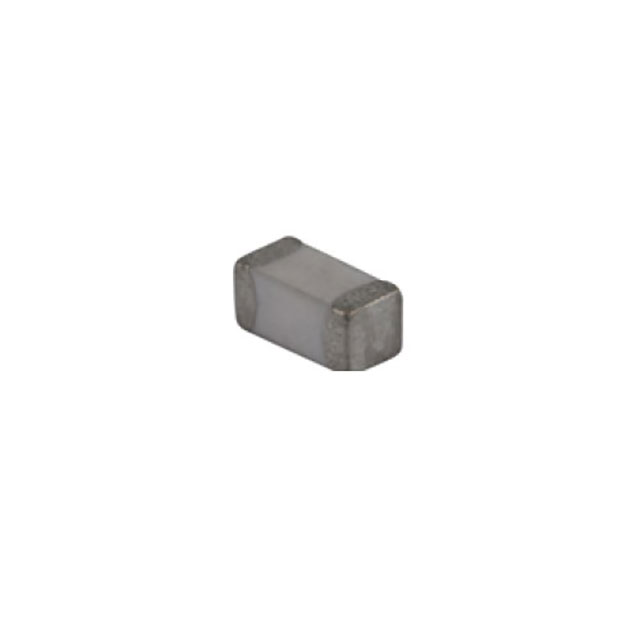

The MCLA1608V2-6R8-R is an unshielded multilayer RF inductor from Eaton Electronics, designed for surface-mount applications. It features a nominal inductance of 6.8 nH with a tolerance of ±5%. The component supports a maximum DC current of 500 mA and has a maximum DC resistance of 300 mOhms. It operates within a temperature range of -40°C to +125°C and meets AEC-Q200 automotive qualification standards. The physical dimensions are 1.6 mm x 0.8 mm x 0.8 mm (0603 package), with a self-resonant frequency of 6 GHz.

Fixed Inductors Feature Summary

• Automotive-grade reliability certified under AEC-Q200 standards
• Unshielded multilayer construction for high-frequency performance
• Compact 0603 surface-mount footprint for space-constrained designs

Fixed Inductors Applications

• RF matching networks in automotive electronics
• High-frequency signal filtering circuits
• Impedance matching in mobile communication modules

Fixed Inductors Procurement Notes

Verify the specific suffix V2 against the official Eaton datasheet to confirm the exact electrical characteristics and packaging configuration. Ensure that the AEC-Q200 qualification status aligns with your project's automotive requirements. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components. Confirm lead times and reel quantities directly with the supplier prior to ordering.

Fixed Inductors Selection Notes

Select this component when a low-inductance value near 6.8 nH is required for RF applications. The unshielded design may necessitate careful PCB layout to minimize electromagnetic interference. Consider the 500 mA current rating and 300 mOhm DCR limits to ensure thermal stability. The wide operating temperature range makes it suitable for harsh automotive environments compared to commercial-grade alternatives.

Fixed Inductors Part Context

This part belongs to the MCLA series of auto chip inductors manufactured by Eaton Electronics. The series utilizes multilayer ceramic technology to provide stable inductance values in small form factors. The MCLA1608V2-6R8-R specifically targets the 0603 package size, offering a balance between electrical performance and board space efficiency for modern electronic assemblies.

Fixed Inductors Replacement Considerations

Consult Eaton Electronics documentation for officially confirmed substitute part numbers. Generic cross-references should be validated against pinout, inductance tolerance, and current rating specifications before implementation.
