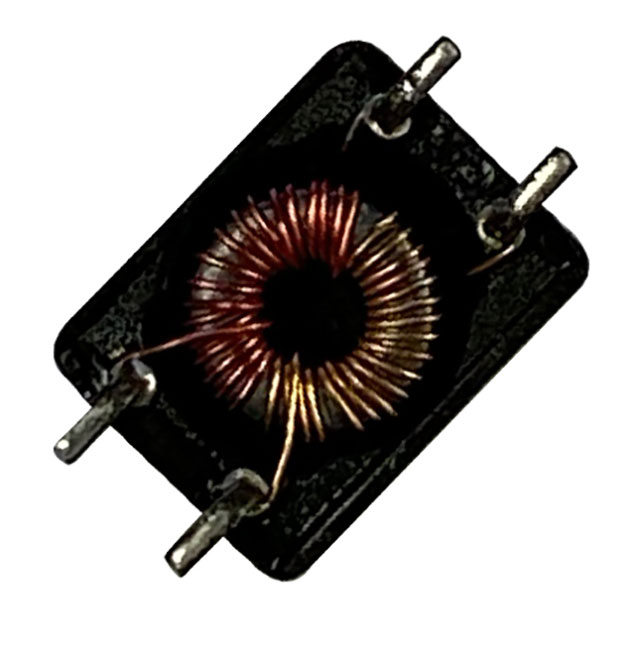

MCM-0905S-202Y-F

Description：CMC 2MH 600MA 2LN SMD
Series：MCM-0905
Mfr：Pulse Electronics
Package：Tape & Reel (TR)

SKU:e24387299df5 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

MCM-0905S-202Y-F is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 2MH 600MA 2LN SMD. Review the specifications below when checking this part for your BOM.

Common Mode Chokes specifications for MCM-0905S-202Y-F

Description：CMC 2MH 600MA 2LN SMD
Series：MCM-0905
Mfr：Pulse Electronics
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：600mA
DC Resistance (DCR) (Max)：420mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.350" L x 0.213" W (8.90mm x 5.40mm)
Height (Max)：0.197" (5.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：-

Common Mode Chokes datasheet and documents for MCM-0905S-202Y-F

MCM-0905S-202Y-F

Common Mode Chokes Overview

The MCM-0905S-202Y-F is a horizontal common mode choke manufactured by Pulse Electronics. It features a 4-pin surface mount package with dimensions of 9.0 mm length, 5.0 mm width, and 5.0 mm height. The component provides an inductance of 2 mH at a test frequency of 100 kHz and supports a maximum current rating of 600 mA. Its maximum DC resistance is specified as 420 mOhms.

Common Mode Chokes Feature Summary

Horizontal four-pin surface mount configuration for compact circuit board integration
Common mode noise filtering capability for dual-line signal protection
Ferrite core construction optimized for high-frequency interference suppression

Common Mode Chokes Applications

Data line noise suppression in portable electronic devices
Signal integrity enhancement in USB or communication interfaces
Electromagnetic interference mitigation in consumer electronics

Common Mode Chokes Procurement Notes

Verify the exact part number suffix against official manufacturer documentation to ensure correct specifications. Confirm that the horizontal pin orientation matches the target PCB footprint design. Check RoHS compliance status through the official datasheet before finalizing procurement decisions.

Common Mode Chokes Selection Notes

Select this component when space constraints require a low-profile horizontal mounting style. Ensure the 600 mA current rating meets the operational requirements of the protected lines. Verify that the 2 mH inductance value aligns with the targeted noise frequency spectrum for effective filtering performance.

Common Mode Chokes Part Context

This component belongs to the common mode choke category within Pulse Electronics' passive component portfolio. It serves as a specialized filter for suppressing electromagnetic interference on differential signal pairs. The horizontal form factor distinguishes it from standard vertical mounting alternatives in similar size classes.
