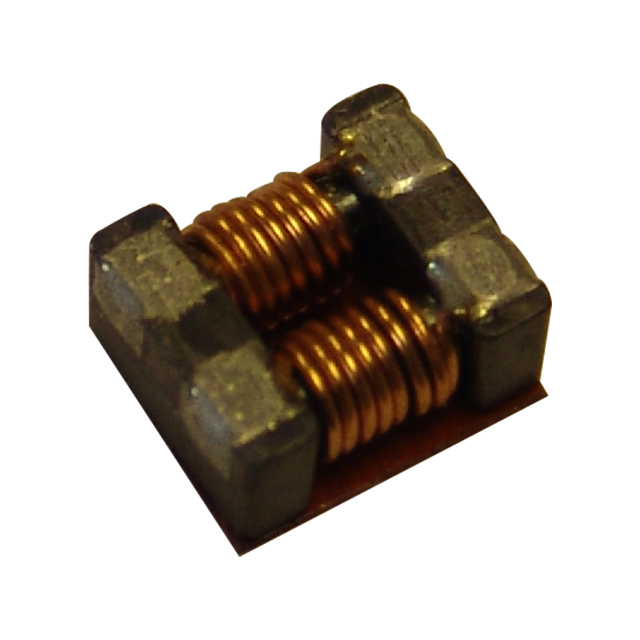

MCM-7060M-501 is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists Pulse Electronics. Its product description is CMC 5A 2LN 350 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for MCM-7060M-501
- Description：CMC 5A 2LN 350 OHM SMD
- Series：MCM-7060M
- Mfr：Pulse Electronics
- Package：Tape & Reel (TR)
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：5A
- DC Resistance (DCR) (Max)：10mOhm
- Voltage Rating - DC：125V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.295" L x 0.236" W (7.50mm x 6.00mm)
- Height (Max)：0.150" (3.80mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：350 Ohms @ 100 MHz
Common Mode Chokes datasheet and documents for MCM-7060M-501
Common Mode Chokes Overview
The MCM-7060M-501 is a surface-mount common mode choke manufactured by Pulse Electronics. It features two channels with an inductance of 350 Ohms and supports a maximum current of 5A. The component measures 7.50mm in length and 6.00mm in width, utilizing a horizontal mounting style with four pad connections.
Common Mode Chokes Feature Summary
- Dual-channel design for effective noise suppression
- Surface-mount construction for automated assembly
- Horizontal footprint configuration
Common Mode Chokes Applications
- Common mode noise filtering in electronic circuits
- Signal integrity enhancement in high-speed data lines
- Electromagnetic interference reduction in compact modules
Common Mode Chokes Procurement Notes
Verify the specific manufacturer datasheet to confirm electrical tolerances and thermal ratings before integration. Ensure the PCB layout accommodates the 7.50mm x 6.00mm horizontal footprint and four-pad connection scheme. Cross-reference the 350 Ohms impedance value against system requirements to validate performance under operational conditions.
Common Mode Chokes Selection Notes
Select this component when dual-channel common mode filtering is required in space-constrained designs. The 5A current rating suits applications needing robust noise attenuation without excessive size. The horizontal orientation facilitates specific board routing strategies compared to vertical alternatives.
Common Mode Chokes Part Context
This part belongs to the MCM series of common mode chokes from Pulse Electronics. It is designed for surface-mount technology, offering a compact solution for electromagnetic interference mitigation. The series typically targets applications requiring reliable noise suppression in dense circuit environments.
Common Mode Chokes Replacement Considerations
The MCM-7060M-301 is a related variant within the same product family, differing primarily in impedance characteristics. Verify compatibility regarding current handling and physical dimensions when considering substitutes.
