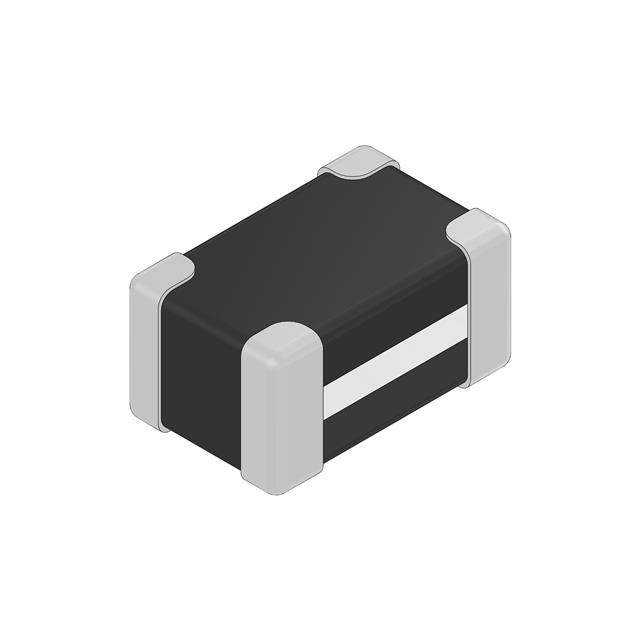

MCM2012B161GBEDG is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists INPAQ Technology Co., Ltd. Its product description is CMC 400MA 2LN 160 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for MCM2012B161GBEDG
- Description：CMC 400MA 2LN 160 OHM SMD
- Series：MCM 2012 B
- Mfr：INPAQ Technology Co., Ltd
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：400mA
- DC Resistance (DCR) (Max)：400mOhm
- Voltage Rating - DC：10V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height (Max)：0.043" (1.10mm)
- Package / Case：0805 (2012 Metric), 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：160 Ohms @ 100 MHz
Common Mode Chokes datasheet and documents for MCM2012B161GBEDG
Common Mode Chokes Overview
The MCM2012B161GBEDG is a surface mount common mode choke manufactured by INPAQ Technology Co., Ltd. It features two lines with an impedance of 160 Ohms at 100 MHz and a DC resistance of 400 mOhm. The component supports a current rating of 400 mA. It is designed for high-speed signal filtering applications within electronic circuits.
Common Mode Chokes Feature Summary
- Surface mount construction for automated assembly
- Common mode noise suppression capability
- High-speed signal filtering performance
Common Mode Chokes Applications
- High-speed data line protection
- EMI/EMC filtering in compact electronics
- Signal integrity enhancement in mobile devices
Common Mode Chokes Procurement Notes
Verify the complete part number including suffixes against official INPAQ Technology documentation to ensure correct impedance and current ratings. Confirm RoHS compliance status through manufacturer certificates. Cross-reference datasheet specifications with design requirements before procurement to avoid compatibility issues.
Common Mode Chokes Selection Notes
Select this component based on required impedance at specific frequencies and current handling capabilities. Ensure the surface mount package fits the PCB layout constraints. Verify thermal performance and operating temperature range suitability for the intended application environment.
Common Mode Chokes Part Context
This component belongs to INPAQ Technology's lineup of circuit protection and EMI/EMC solutions. The company specializes in components designed to ensure smooth operation of electronic products, including filters and antennas for various communication standards.
Common Mode Chokes Replacement Considerations
Consult official INPAQ Technology substitution guides or equivalent manufacturer datasheets for verified alternatives. Ensure replacement parts match impedance, current rating, and physical dimensions.
