Product Detailed Parameters

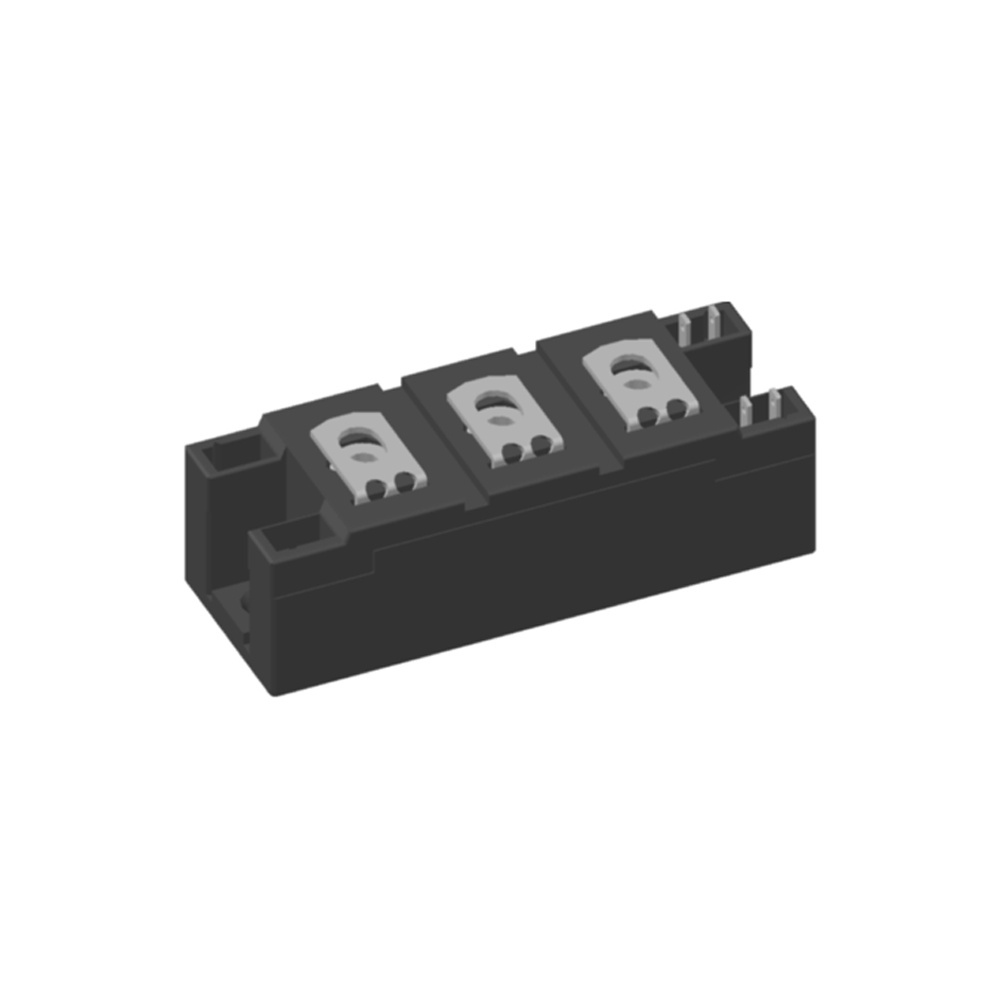

- Description：SCR MODULE 1.6KV 160A MODULE
- Series：-
- Mfr：IXYS
- Package：Box
- Structure：Series Connection - All SCRs
- Number of SCRs, Diodes：2 SCRs
- Voltage - Off State：1.6 kV
- Current - On State (It (AV)) (Max)：160 A
- Current - On State (It (RMS)) (Max)：250 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：4750A, 5130A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Voltage - Gate Trigger (Vgt) (Max)：2.5 V
- Current - Gate Trigger (Igt) (Max)：150 mA
- Current - Hold (Ih) (Max)：200 mA
- Grade：-
- Qualification：-
Download product information
Overview
The IXYS MCMA160P1600YA is a Silicon Controlled Rectifier (SCR) module rated for 1.6 kV repetitive peak reverse voltage and 160 A average on-state current. It utilizes a Y4 package configuration with six terminals, designed for panel mounting applications. The device operates within a junction temperature range of -40 °C to +125 °C and complies with RoHS standards.
Feature Summary
- Features a robust silicon construction optimized for high-power industrial switching environments.
- Provides reliable electrical isolation through an isolated base design suitable for heat sink integration.
Applications
- Industrial motor drive systems
- High-power DC power supplies
- Resistive load control circuits
Procurement Notes
Verify the specific datasheet revision and pinout configuration against your schematic before procurement. Confirm that the thermal management solution matches the module's mounting requirements. Ensure the gate drive circuitry aligns with the specified trigger parameters to prevent false triggering or failure during operation.
Selection Notes
Select this component when a 1.6 kV blocking capability and 160 A continuous current handling are required in a compact form factor. Consider the TO-240AA compatible footprint if space constraints exist. Evaluate the thermal resistance characteristics to ensure adequate heat dissipation under maximum load conditions without exceeding the 125 °C junction limit.
Part Context
This part belongs to the IXYS MCMA series of thyristor modules, which are engineered for demanding power electronics applications. The series offers various current ratings within a standardized mechanical envelope, facilitating design flexibility across different power levels while maintaining consistent mounting and thermal interface specifications.
Replacement Considerations
Direct substitutes include other IXYS MCMA series devices with matching voltage and current ratings, such as the MCMA110P1600TA or MCMA260P1600YA, provided the current capacity meets the application needs. Verify terminal compatibility and thermal performance before substitution.
