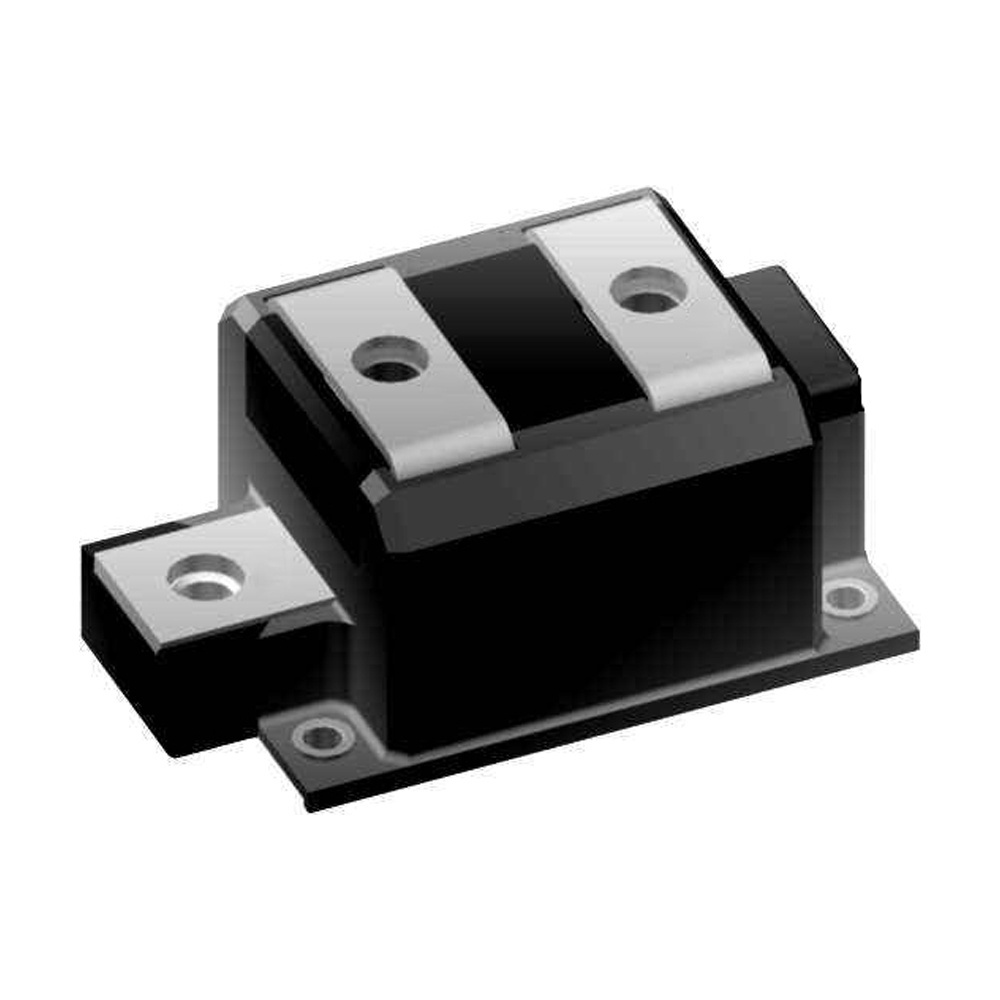

MCMA700P1600NCA

$182.20

Description：SCR MODULE 1.6KV 700A COMPACK
Series：-

SKU:b0cdc2eda657 Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：SCR MODULE 1.6KV 700A COMPACK
Series：-
Mfr：IXYS
Package：Box
Structure：Series Connection - All SCRs
Number of SCRs, Diodes：2 SCRs
Voltage - Off State：1.6 kV
Current - On State (It (AV)) (Max)：700 A
Current - On State (It (RMS)) (Max)：1100 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：19000A, 20500A
Operating Temperature：-40°C ~ 140°C (TJ)
Mounting Type：Chassis Mount
Package / Case：ComPack
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：300 mA
Current - Hold (Ih) (Max)：300 mA
Grade：-
Qualification：-

Download product information

MCMA700P1600NCA

Overview

The MCMA700P1600NCA is a high-power thyristor module manufactured by IXYS. It features a nominal on-state current of 700A and a repetitive peak off-state voltage of 1600V. The device utilizes silicon technology and is housed in a screw-mount package designed for robust industrial applications. This component belongs to the COMPACT series, offering reliable performance for demanding power conversion systems.

Feature Summary

High current handling capability with 700A nominal rating
Robust voltage blocking up to 1600V peak
Screw-mount installation for secure mechanical connection

Applications

Line rectifying at 50Hz/60Hz
Soft-start AC motor control
DC motor control
Power electronics conversion

Procurement Notes

Verify the specific suffix 'NCA' against official datasheets to confirm exact electrical characteristics and pinout configuration. Ensure compatibility with existing thermal management solutions and gate drive requirements before integration into final designs.

Selection Notes

Select this module for applications requiring high current density and voltage resilience. Consider thermal resistance and cooling methods suitable for screw-mount packages. Evaluate system duty cycles against the 700A rating to ensure long-term reliability under operational stress conditions.

Part Context

This part is part of IXYS's thyristor module portfolio, specifically within the COMPACT series. It serves as a discrete power switching element for heavy-duty industrial equipment. The design focuses on efficiency and durability in high-power environments.

Replacement Considerations

Consult official substitution guides for equivalent SCR modules from IXYS or other manufacturers. Verify matching voltage, current, and mounting specifications when considering alternative components.
