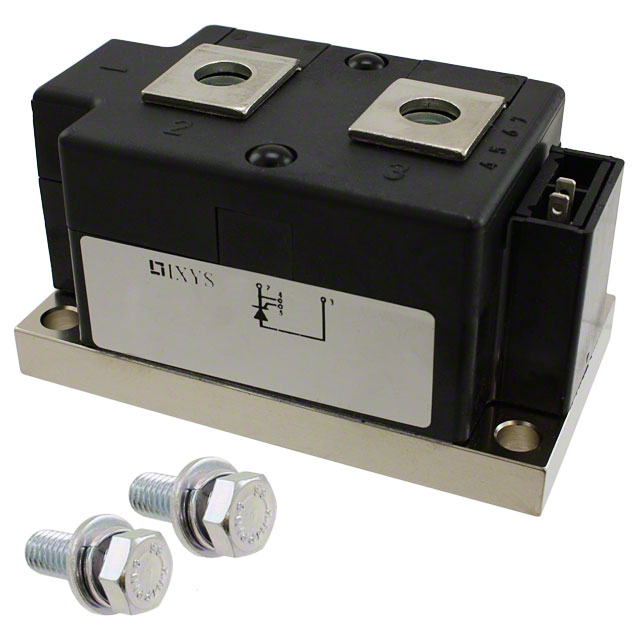

MCO500-12IO1

$129.30

Description：MOD THYRISTOR SGL 1200V Y1-CU
Series：-

SKU:756beea91d1c Category: SCRs - Modules Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：MOD THYRISTOR SGL 1200V Y1-CU
Series：-
Mfr：IXYS
Package：Box
Structure：Single
Number of SCRs, Diodes：1 SCR
Voltage - Off State：1.2 kV
Current - On State (It (AV)) (Max)：560 A
Current - On State (It (RMS)) (Max)：880 A
Current - Non Rep. Surge 50, 60Hz (Itsm)：17000A, 16000A
Operating Temperature：-40°C ~ 140°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Y1-CU
Voltage - Gate Trigger (Vgt) (Max)：2 V
Current - Gate Trigger (Igt) (Max)：300 mA
Current - Hold (Ih) (Max)：300 mA
Grade：-
Qualification：-

Download product information

MCO500-12IO1

Overview

The MCO500-12IO1 is a high-current thyristor module manufactured by IXYS. It features a single-phase configuration with a maximum repetitive peak reverse voltage of 1200 V and an average on-state current rating of 500 A. The device utilizes a screw-mount installation style within a SOT-227B package, designed for robust thermal management in industrial power applications.

Feature Summary

High current handling capability suitable for heavy-duty power conversion
Robust insulation and mechanical stability via screw-mount design
Engineered for reliable operation in demanding industrial environments

Applications

Industrial motor drives
Welding equipment
Resistive heating control systems

Procurement Notes

Verify the specific suffix IO1 against official IXYS documentation to confirm pinout and terminal configuration. Ensure compatibility with existing cooling infrastructure due to the high current rating. Confirm RoHS compliance status through the manufacturer's latest datasheet before integration into regulated assemblies.

Selection Notes

Select this component when designing circuits requiring 500 A continuous conduction at 1200 V blocking voltage. Evaluate thermal resistance requirements carefully to maintain junction temperature within safe operating limits under full load conditions. Consider gate drive characteristics for reliable triggering in high-power scenarios.

Part Context

This module belongs to the MCO series of high-current thyristors from IXYS, now part of Littelfuse. The series is characterized by silicon technology optimized for high-power switching applications. It serves as a discrete solution for rectification and phase control where standard packages cannot handle the required current densities.
