Product Detailed Parameters

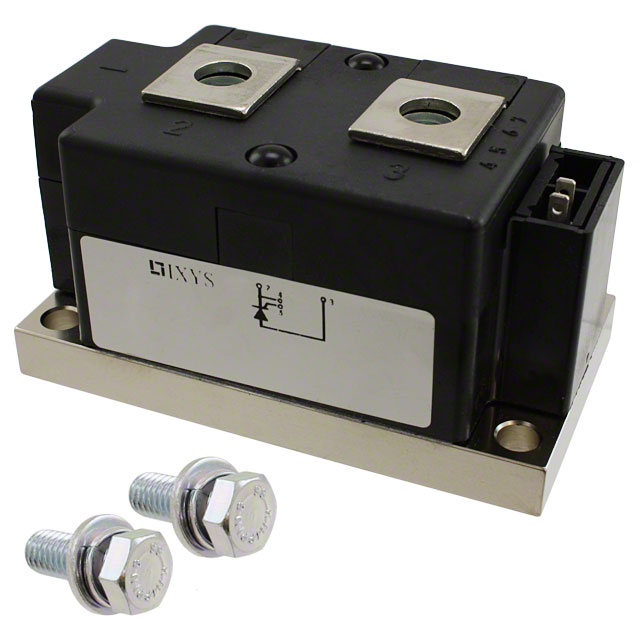

- Description：MOD THYRISTOR SGL 1600V Y1-CU
- Series：-
- Mfr：IXYS
- Package：Box
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：1.6 kV
- Current - On State (It (AV)) (Max)：560 A
- Current - On State (It (RMS)) (Max)：880 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：17000A, 16000A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Y1-CU
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：300 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The MCO500-16IO1 is a high-current thyristor module manufactured by IXYS. It features a single-phase configuration with an output current rating of 500 A and a reverse voltage capability of 1600 V. The device utilizes silicon technology and is housed in a SOT-227B package designed for screw mount installation. It operates within a temperature range from -40°C to +150°C, supporting robust performance in demanding power electronics applications.
Feature Summary
- High current handling capability suitable for heavy-duty industrial loads
- Robust thermal management design for stable operation at elevated temperatures
- Integrated gate control structure for reliable triggering
Applications
- Industrial motor drives and speed controllers
- High-power rectifier circuits
- Static VAR compensators
- Welding equipment power supplies
Procurement Notes
Verify the specific suffix 'IO1' against the manufacturer's latest datasheet to confirm pinout and mechanical dimensions. Ensure compatibility with existing cooling systems, as this module requires appropriate thermal interface materials for effective heat dissipation during high-current operation.
Selection Notes
Select this component when designing systems requiring high continuous current capacity and moderate blocking voltage. Consider the SOT-227B package constraints for PCB layout or chassis mounting. Evaluate thermal resistance requirements to ensure the junction temperature remains within the specified operational limits under maximum load conditions.
Part Context
This module belongs to the MCO series of high-power thyristors from IXYS. The series is engineered for applications demanding high reliability and efficient power conversion. The MCO500 variant specifically targets scenarios where substantial current switching is necessary, providing a balance between performance and ruggedness in industrial environments.
Replacement Considerations
Consult official cross-reference guides for equivalent parts from IXYS or other manufacturers. Verify that any substitute matches the 500 A current rating, 1600 V voltage rating, and SOT-227B package form factor to ensure direct interchangeability without circuit redesign.
