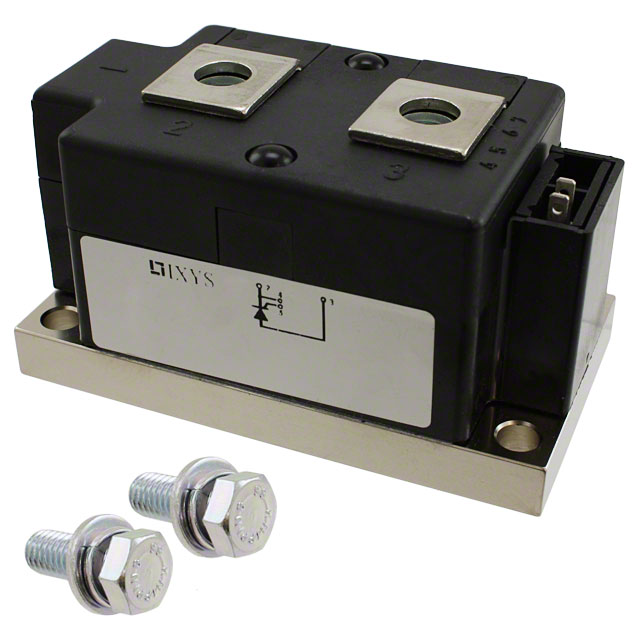

MCO600-22IO1
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：MOD THYRISTOR SGL 2200V Y1-CU
- Series：-
- Mfr：IXYS
- Package：Box
- Structure：Single
- Number of SCRs, Diodes：1 SCR
- Voltage - Off State：2.2 kV
- Current - On State (It (AV)) (Max)：600 A
- Current - On State (It (RMS)) (Max)：928 A
- Current - Non Rep. Surge 50, 60Hz (Itsm)：15000A, 16000A
- Operating Temperature：-40°C ~ 140°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Y1-CU
- Voltage - Gate Trigger (Vgt) (Max)：2 V
- Current - Gate Trigger (Igt) (Max)：300 mA
- Current - Hold (Ih) (Max)：300 mA
- Grade：-
- Qualification：-
Download product information
Overview
The MCO600-22IO1 is a silicon thyristor module manufactured by IXYS, designed for high-power applications. It features a continuous output current of 600 A and a reverse voltage rating of 2.2 kV. The device utilizes a screw mount installation style within a Y1-CU package configuration. Operating reliably across a temperature range from -40°C to +125°C, this single phase leg component belongs to the MCO600 series. It is classified under discrete and power modules, utilizing standard silicon technology for robust performance in industrial environments.
Feature Summary
- High current capacity with 600 A continuous output capability
- Robust voltage handling rated at 2.2 kV reverse voltage
- Durable construction suitable for demanding thermal conditions
Applications
- Industrial motor drives
- High-power rectification systems
- Static switchgear applications
Procurement Notes
Verify the specific datasheet version for the MCO600-22IO1 before integration, as electrical characteristics may vary between manufacturing batches. Confirm mechanical dimensions and torque specifications for the screw mount interface to ensure proper thermal contact and structural integrity during operation. Cross-reference the part number with official IXYS documentation to validate compatibility with existing circuit designs and cooling requirements.
Selection Notes
Select the MCO600-22IO1 when system requirements demand high current handling alongside significant voltage blocking capabilities. This module is appropriate for designs requiring reliable performance in harsh thermal environments up to 125°C. Consider the physical constraints of the Y1-CU package and the necessity for screw mounting hardware when evaluating space limitations and assembly methods for the target power electronics application.
Part Context
This component is part of the MCO600 series of high-current thyristor modules produced by IXYS. The series is engineered for heavy-duty power conversion tasks. The MCO600-22IO1 specifically denotes the 2.2 kV voltage variant within this lineup. These modules are widely utilized in sectors requiring substantial power control and conversion efficiency.
Replacement Considerations
Publicly confirmed substitute part numbers for the MCO600-22IO1 were not identified in available documentation. Verify compatibility with alternative high-current thyristor modules only through direct technical comparison of electrical ratings and mechanical footprints.
