MCP14A0051T-E/CH

Overview

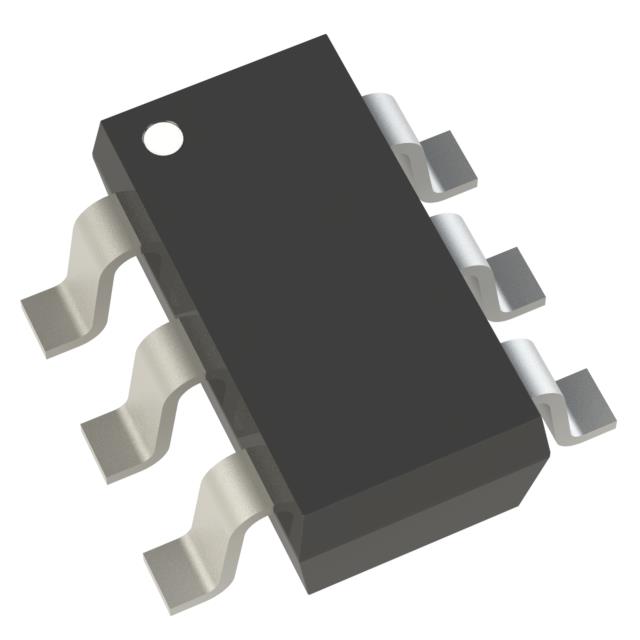

The MCP14A0051T-E/CH is a single-channel MOSFET gate driver manufactured by Microchip Technology. It features a push-pull output stage capable of sourcing and sinking 0.5 A to drive external N-Channel or P-Channel MOSFETs efficiently. The device operates with a supply voltage range of 4.5 V to 18 V and accepts an inverting logic input. It is housed in a compact SOT-23-6 surface-mount package, designed for applications requiring reliable switching control with low threshold input compatibility.

Feature Summary

• Provides high-current push-pull output stage for efficient MOSFET switching
• Supports both N-Channel and P-Channel power devices
• Features inverting logic input for flexible control integration
• Operates within a wide supply voltage range for diverse power systems

Applications

• DC-DC converter synchronous rectification
• Motor control bridge drivers
• Power management circuits requiring isolated or non-isolated gate driving

Procurement Notes

Verify the complete part number including suffixes such as -E/CH against official Microchip documentation to ensure correct temperature grade and packaging configuration. Confirm that the SOT-23-6 package variant matches your PCB footprint requirements. Cross-reference datasheet revisions to validate electrical characteristics before finalizing procurement specifications.

Selection Notes

Select this component when a single-channel driver with 0.5 A peak current is sufficient for the target MOSFET gate charge. Ensure the input logic levels are compatible with the inverting configuration. Consider thermal dissipation capabilities within the SOT-23-6 package relative to the switching frequency and duty cycle of the application.

Part Context

This device belongs to the MCP14A series of MOSFET drivers from Microchip Technology. It is specifically engineered for cost-sensitive and space-constrained designs where moderate drive strength is required. The series offers various package options and voltage ranges to suit different industrial and consumer power electronics applications.

Replacement Considerations

Consult Microchip's official cross-reference tools for verified substitutes. Ensure any replacement maintains the 0.5 A output current capability, SOT-23-6 footprint, and 4.5 V to 18 V operating range without altering the inverting logic function.
