MCQ1V3216-R820-R

Fixed Inductors Overview

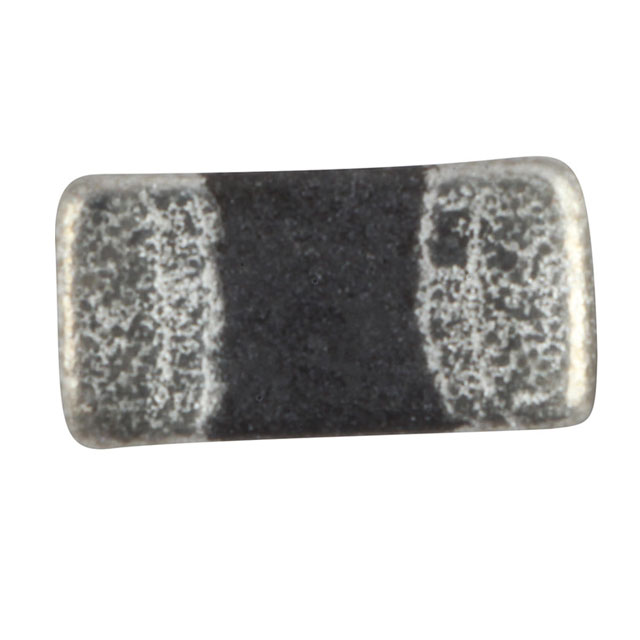

The MCQ1V3216-R820-R is a fixed multilayer chip inductor from Eaton Electronics, designed for surface-mount applications. It features an inductance of 820 nH with a tolerance of ±10%. The component supports a maximum DC current of 150 mA and has a maximum DC resistance of 600 mOhms. It operates within a temperature range of -40°C to +85°C. The physical dimensions are 3.2 mm x 1.6 mm x 0.9 mm (1206 metric package). The unit weight is approximately 30 mg.

Fixed Inductors Feature Summary

• Multilayer construction for high reliability
• Unshielded design suitable for general RF applications
• Surface-mount technology compatible

Fixed Inductors Applications

• Commercial electronic circuits
• RF signal processing
• General-purpose filtering

Fixed Inductors Procurement Notes

Verify the specific electrical parameters against the official Eaton datasheet before integration. Confirm that the 150 mA current rating and 600 mOhm resistance meet the circuit requirements. Ensure the 1206 footprint matches the PCB layout. Check RoHS compliance status as indicated in the manufacturer documentation.

Fixed Inductors Selection Notes

Select this component when an unshielded inductor with 820 nH nominal value is required. Consider the 150 mA current limit and 600 mOhm DCR for power loss calculations. The 1206 package size offers a balance between performance and board space. Verify thermal stability within the specified -40°C to +85°C operating range.

Fixed Inductors Part Context

This part belongs to the MCQ1V series of multilayer chip inductors manufactured by Eaton Electronics. The series provides various inductance values in standard packages. The MCQ1V3216 variant specifically utilizes the 1206 metric footprint. These components are generally used in commercial electronics where standard RF inductance is needed.

Fixed Inductors Replacement Considerations

Direct substitutes include other 820 nH inductors in the 1206 package with similar current ratings. Verify compatibility with existing PCB footprints and soldering profiles. Cross-reference specifications with other manufacturers offering equivalent RF inductors.
