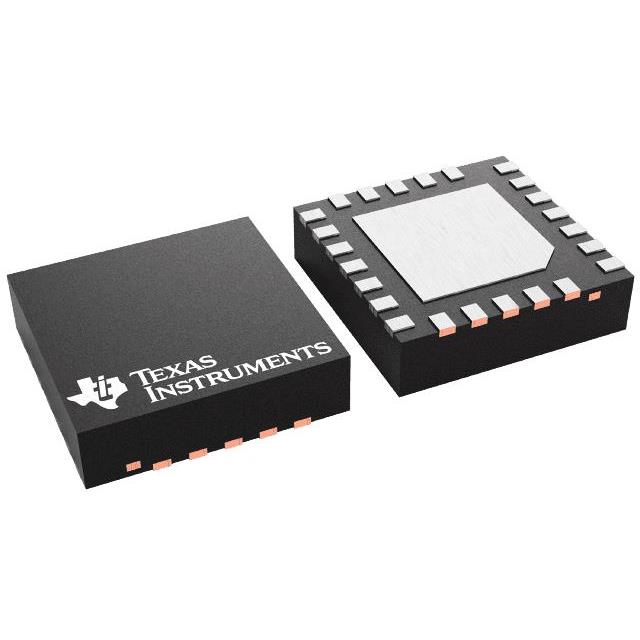

MCT8314Z0HRRWR

Overview

The MCT8314Z0HRRWR is a Texas Instruments single-chip, sensor-based trapezoidal commutation device designed for driving 12V to 24V Brushless DC (BLDC) motors. It integrates three half-bridge drivers with a 40V absolute maximum capability and low RDS(ON) of 575mΩ at TA=25°C. The device supports PWM frequencies up to 100kHz and operates on supply voltages from 5V to 35V. It features an integrated 5V LDO regulator providing 30mA current. The component handles peak output currents of 1.5A and includes built-in protection mechanisms such as overcurrent protection and motor lock detection.

Feature Summary

• Integrates sensor-based trapezoidal control eliminating the need for external microcontrollers
• Includes automatic synchronous rectification to reduce power losses
• Features integrated current limiting without requiring external sense resistors
• Supports analog or digital Hall input signals for position sensing

Applications

• HVAC motor systems
• Small home appliances
• Office automation equipment
• Robotics applications

Procurement Notes

Verify the specific suffix '0HRRWR' against official Texas Instruments documentation to confirm tape and reel packaging specifications and exact marking codes. Ensure compatibility with the standard MCT8314Z functional parameters. Confirm RoHS compliance status and lead times directly with authorized distributors prior to ordering.

Selection Notes

Select this component for applications requiring simplified BLDC motor control without complex firmware development. It is suitable for systems operating within a 5V to 35V supply range. Consider the 1.5A peak current capacity and 575mΩ on-resistance for thermal management in compact designs requiring high efficiency.

Part Context

The MCT8314Z belongs to Texas Instruments' family of single-chip BLDC motor drivers. It provides a complete solution for trapezoidal commutation by integrating power stages, control logic, and protection circuits. This integration reduces system complexity and board space compared to discrete solutions, making it ideal for cost-sensitive consumer and industrial motor drives.

Replacement Considerations

The MCT8315Z offers higher peak current capability (4A) and lower on-resistance (275mΩ). Verify if the increased performance meets application requirements before substituting.
