MCZ0806AH900L2TA0G

Common Mode Chokes Overview

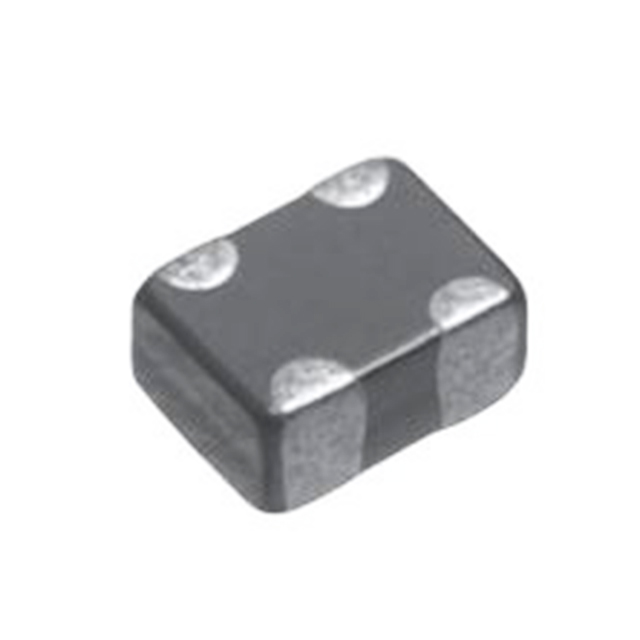

The MCZ0806AH900L2TA0G is a surface-mount common mode choke manufactured by TDK Corporation. It features a two-channel configuration with an impedance of 90 Ohms at 100 MHz and a maximum DC current rating of 100 mA. The component has a maximum DC resistance of 4 Ohms and operates within a temperature range of -40°C to +85°C. Its physical dimensions are 0.85 mm in length, 0.6 mm in width, and 0.5 mm in height, housed in an 0806 (2016 metric) package.

Common Mode Chokes Feature Summary

• Provides effective suppression of common mode noise for high-speed differential signal lines
• Designed for surface mount assembly using standard reflow soldering processes
• Constructed as an unshielded component suitable for compact PCB layouts

Common Mode Chokes Applications

• High-speed data interface protection
• Differential line filtering in electronic circuits
• Signal integrity enhancement in communication modules

Common Mode Chokes Procurement Notes

Verify the specific ordering suffix against official TDK documentation to ensure correct packaging and tape specifications. Confirm that the requested quantity aligns with manufacturer reel sizes or cut tape availability. Cross-reference the part number with authorized distributors to validate authenticity and traceability before finalizing procurement orders.

Common Mode Chokes Selection Notes

Select this component when designing circuits requiring common mode noise attenuation for differential signals operating up to 100 MHz. Ensure the design accommodates the 100 mA current limit and 4 Ohm DC resistance. Verify that the 0806 footprint matches the target PCB layout constraints and thermal management requirements.

Common Mode Chokes Part Context

This component belongs to the MCZ-AH series of common mode chokes from TDK. The series is characterized by its small form factor and suitability for portable electronics. It serves as a passive filter element to mitigate electromagnetic interference in sensitive signal paths without significantly impacting the differential signal integrity.

Common Mode Chokes Replacement Considerations

Consult official TDK substitution guides for verified alternatives. Do not assume compatibility with other series such as MCZ-DH due to differences in shielding and channel configurations.
