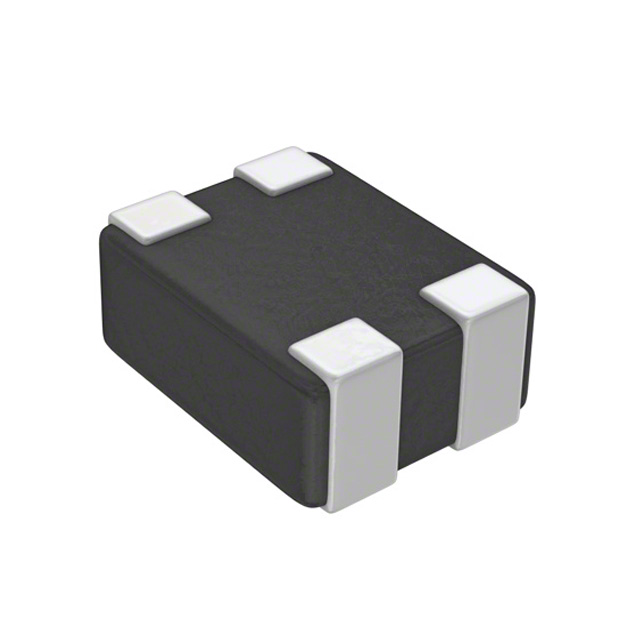

MCZ1210AH201CPTA0G is listed in the Common Mode Chokes range at ChipApex. The manufacturer field lists TDK Corporation. Its product description is CMC 100MA 2LN 200 OHM SMD. Review the specifications below when checking this part for your BOM.
Common Mode Chokes specifications for MCZ1210AH201CPTA0G
- Description：CMC 100MA 2LN 200 OHM SMD
- Series：MCZ-AH
- Mfr：TDK Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：100mA
- DC Resistance (DCR) (Max)：4Ohm
- Voltage Rating - DC：5V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.049" L x 0.039" W (1.25mm x 1.00mm)
- Height (Max)：0.024" (0.60mm)
- Package / Case：0504 (1210 Metric), 4 Lead
- Inductance @ Frequency：-
- Impedance @ Frequency：200 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Common Mode Chokes datasheet and documents for MCZ1210AH201CPTA0G
Common Mode Chokes Overview
The MCZ1210AH201CPTA0G is a single-channel common mode filter choke manufactured by TDK Corporation. It features an impedance of 200 Ohms with a tolerance of 25%, measured at a test frequency of 100 MHz. The component supports a maximum DC current of 100 mA and operates within a temperature range of -40°C to +85°C. Designed for surface mount technology, it utilizes a 1210 metric package (0404) with dimensions of 1.25 mm in length, 1 mm in width, and 0.5 mm in height.
Common Mode Chokes Feature Summary
- Single-channel configuration for differential line filtering
- Compact 1210 metric footprint suitable for space-constrained PCBs
- Automotive-grade reliability within specified thermal limits
Common Mode Chokes Applications
- High-speed differential signal line protection
- Automotive electronic circuit noise suppression
- Common mode interference mitigation in compact devices
Common Mode Chokes Procurement Notes
Verify the complete part number including suffixes against official TDK documentation to ensure correct impedance and tolerance specifications. Confirm RoHS compliance status and automotive qualification requirements prior to integration. Cross-reference datasheet parameters with design constraints to validate performance under operating conditions.
Common Mode Chokes Selection Notes
Select this component for applications requiring single-channel filtering with specific 200 Ohm impedance characteristics. Ensure the 100 mA current rating aligns with the target circuit's operational limits. Consider the 1210 package dimensions for board layout compatibility and verify thermal management capabilities within the -40°C to +85°C operating range.
Common Mode Chokes Part Context
This component belongs to the MCZ-AH series of common mode chokes from TDK. The series is designed for automotive and industrial applications requiring reliable noise suppression in compact form factors. The MCZ1210AH201CPTA0G specifically addresses single-line filtering needs within this product family.
Common Mode Chokes Replacement Considerations
Consult official TDK substitution guides for verified alternatives. Do not assume interchangeability with other series or manufacturers without validating electrical parameters and physical dimensions.
