MCZ2010AH201L4TA0G

Common Mode Chokes Overview

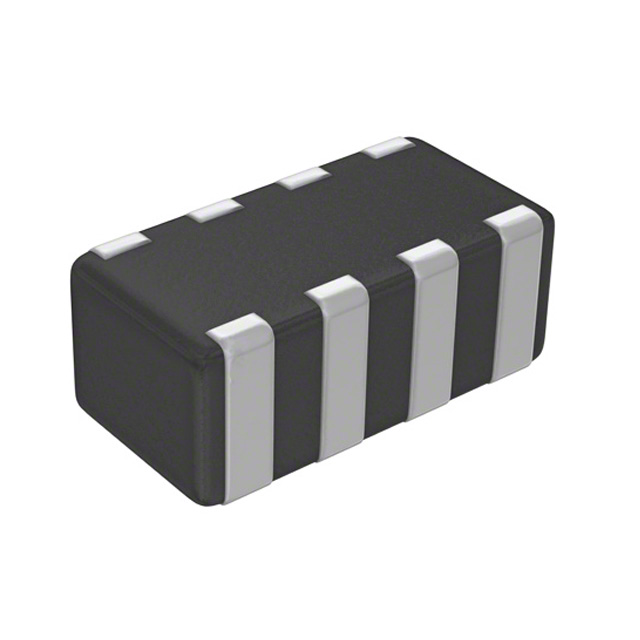

The MCZ2010AH201L4TA0G is a surface-mount common mode choke manufactured by TDK Corporation. It features four lines and provides an impedance of 200 Ohms at 100 MHz. The component supports a current rating of 100 mA and has a maximum DC resistance of 3.5 Ohms. It operates within a temperature range of -40°C to 85°C and carries a DC voltage rating of 5V.

Common Mode Chokes Feature Summary

• Four-line configuration for multi-signal line filtering
• Surface-mount design for automated assembly
• High impedance performance at 100 MHz

Common Mode Chokes Applications

• Signal line noise suppression
• Data processing equipment EMI filtering
• Industrial control system protection

Common Mode Chokes Procurement Notes

Verify the specific datasheet version for precise mechanical dimensions and soldering guidelines. Confirm RoHS compliance status with the manufacturer prior to final procurement decisions. Ensure storage conditions align with moisture sensitivity level requirements to maintain component integrity during assembly processes.

Common Mode Chokes Selection Notes

Select this component when four independent signal lines require common mode noise attenuation in compact designs. The 200 Ohm impedance at 100 MHz suits high-frequency digital signals. Verify that the 100 mA current rating meets the operational load requirements without saturation.

Common Mode Chokes Part Context

This part belongs to the MCZ-AH series of common mode chokes from TDK. The series offers various line counts and impedance values for different filtering needs. The MCZ2010AH201L4TA0G specifically addresses applications requiring four-channel filtering in a small footprint form factor.

Common Mode Chokes Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult TDK technical support for direct equivalents or cross-reference options based on specific electrical and mechanical constraints.
