MD1210K6-G

Overview

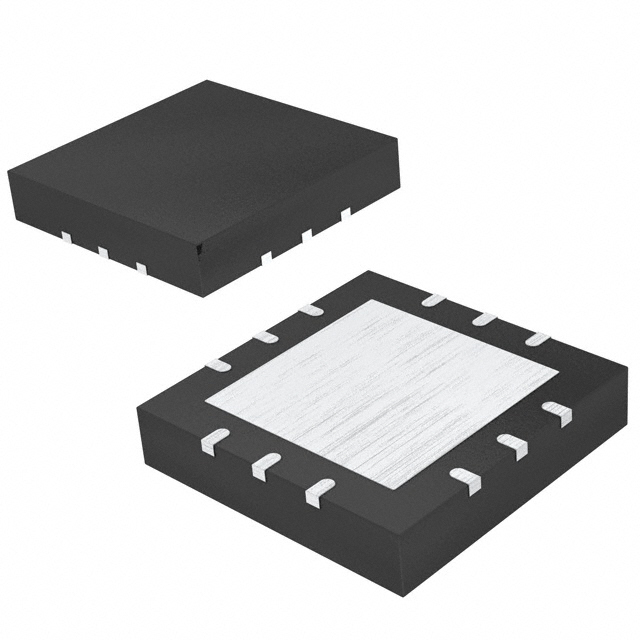

The MD1210K6-G is a high-speed dual MOSFET gate driver manufactured by Microchip Technology. It features two independent drivers capable of sourcing and sinking 2 A of peak output current. The device operates within a supply voltage range of 4.5 V to 13 V and supports both inverting and non-inverting logic inputs. Key electrical parameters include a rise time and fall time of 6 ns, with a maximum operating temperature of +85°C. It is housed in a 12-pin QFN package.

Feature Summary

• Provides dual independent high-speed channel control for precise switching applications
• Delivers robust 2 A peak drive current to efficiently switch power MOSFETs
• Supports flexible logic interface configurations with selectable inversion modes

Applications

• High-frequency DC-DC converter topologies
• Motor control systems requiring fast switching transitions
• Industrial power supply designs

Procurement Notes

Verify the specific ordering suffix and packaging configuration against official Microchip documentation before procurement. Confirm that the component meets RoHS compliance requirements for your target market. Ensure that static-sensitive handling procedures are followed during storage and assembly due to the moisture sensitivity classification associated with this QFN package type.

Selection Notes

Select this component when dual-channel isolation and high-speed performance are required for driving N-channel or P-channel MOSFETs. Consider the 12-pin QFN footprint for space-constrained PCB layouts. Evaluate the 4.5 V minimum supply voltage constraint to ensure compatibility with the system's logic levels and power rails.

Part Context

This part belongs to Microchip's dedicated MOSFET gate driver family, designed for efficient power management. It complements other variants like the MD1213K6-G which offers similar drive capabilities but may differ in specific pinout or thermal characteristics. The series targets applications demanding reliable switching performance in compact form factors.

Replacement Considerations

The MD1213K6-G is a documented alternative within the same product family offering comparable dual-channel drive specifications. Verify pin-to-pin compatibility and thermal performance metrics before substitution.
