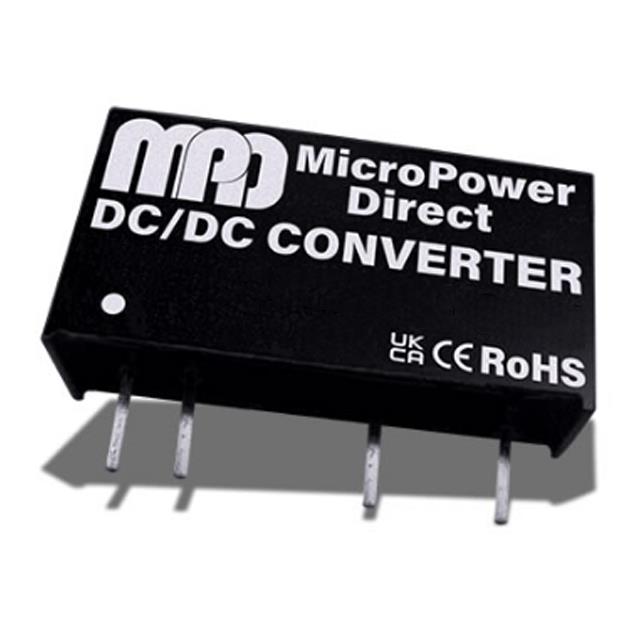

MD124D-05BI is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MicroPower Direct. Its product description is DC/DC,1W,24V IN,5V OUT,3KV,. Review the specifications below when checking this part for your BOM.
DC DC Converters specifications for MD124D-05BI
- Description：DC/DC,1W,24V IN,5V OUT,3KV,
- Series：MD100BI
- Mfr：MicroPower Direct
- Package：Tube
- Type：Isolated Module
- Number of Outputs：2
- Voltage - Input (Min)：21.6V
- Voltage - Input (Max)：26.4V
- Voltage - Output 1：5V
- Voltage - Output 2：-5V
- Voltage - Output 3：-
- Voltage - Output 4：-
- Current - Output (Max)：100mA
- Power (Watts)：1 W
- Voltage - Isolation：3 kV
- Applications：Industrial, ITE (Commercial)
- Features：Proportional Output, SCP
- Operating Temperature：-40°C ~ 105°C
- Efficiency：87%
- Mounting Type：Through Hole
- Package / Case：-
- Size / Dimension：0.77" L x 0.40" W x 0.24" H (19.5mm x 10.2mm x 6.0mm)
- Supplier Device Package：-
- Control Features：Enable, Active High
- Approval Agency：CE
- Standard Number：-
- Grade：-
- Qualification：-
DC DC Converters datasheet and documents for MD124D-05BI
