MD1730-I/M2

Power Management - Specialized Overview

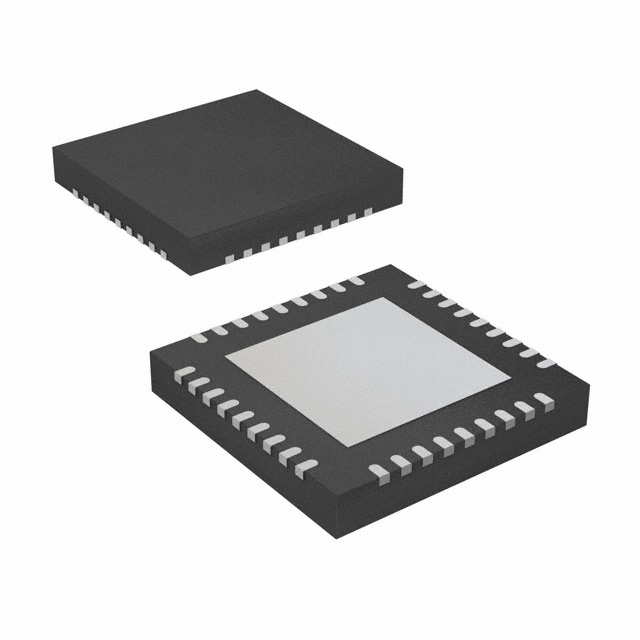

The MD1730-I/M2 is an integrated RF transmitter designed for ultrasound imaging systems. It features eight independent channels with five-level transmit capability and integrated beamformer delay control. The device operates on a supply voltage range of 4.75V to 5.25V and supports surface mount installation in a VQFN-36 package. It functions within an operating temperature range of 0°C to 85°C.

Power Management - Specialized Feature Summary

• Integrates eight-channel RF transmission with five-level output capability
• Includes built-in beamformer delay control functionality
• Optimized for high-efficiency power management in medical imaging

Power Management - Specialized Applications

• Ultrasound imaging systems

Power Management - Specialized Procurement Notes

Verify the specific suffix (I/M2) against official Microchip documentation to confirm the industrial temperature grade and package variant. Ensure compatibility with system voltage requirements of 4.75V to 5.25V. Confirm that the VQFN-36 footprint matches the PCB design. Check for RoHS compliance status in the latest datasheet revision.

Power Management - Specialized Selection Notes

Select this component when designing ultrasound transceivers requiring integrated multi-channel RF generation. It is suitable for applications needing precise beamforming delays without external timing controllers. Consider the thermal performance within the 0°C to 85°C range during system integration.

Power Management - Specialized Part Context

This part belongs to the MD1730 series of RF transmitters from Microchip Technology. It is specifically engineered for medical diagnostic equipment, particularly ultrasound probes and scanners. The series focuses on miniaturization and integration of RF front-end functions.

Power Management - Specialized Replacement Considerations

Consult official Microchip documentation for qualified substitutes. Verify pinout and electrical specifications before replacing.
