MD200K16D2-BP

Overview

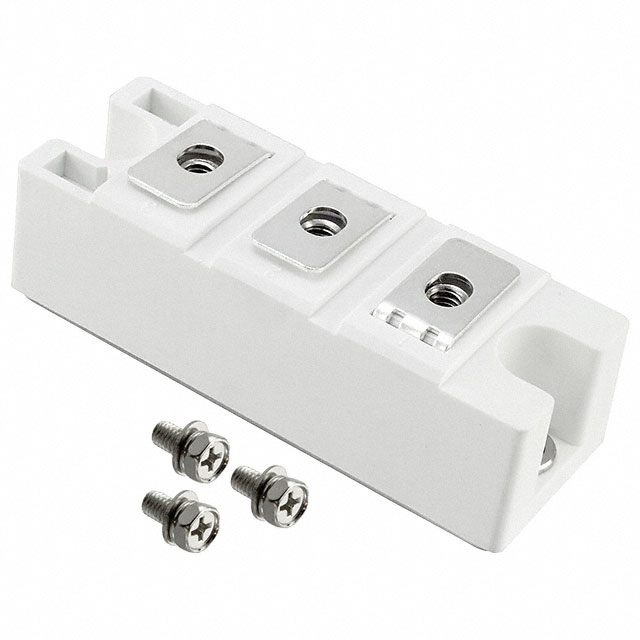

The MD200K16D2-BP is a high-power diode module manufactured by Micro Commercial Components. It features a standard recovery speed exceeding 500ns and supports an average forward current of 200A. The device is rated for a maximum repetitive peak reverse voltage of 1600V. Packaged in the D2 chassis mount format, this component is designed for robust industrial applications requiring reliable rectification under high load conditions.

Feature Summary

• High current handling capability with 200A average forward current rating
• Robust voltage blocking performance up to 1600V reverse voltage
• Standard recovery speed suitable for general power conversion tasks
• Chassis mount packaging design for efficient thermal management

Applications

• Industrial power conversion systems
• High-current rectification circuits
• Power supply units requiring robust diode modules

Procurement Notes

Verify the specific suffix 'BP' against official Micro Commercial Components documentation to confirm exact electrical characteristics and package variations. Ensure compatibility with existing chassis mounting hardware and thermal interface materials before integration into final designs.

Selection Notes

Select this module when applications demand high current capacity and significant reverse voltage blocking. Consider the standard recovery speed for frequency requirements. Evaluate thermal dissipation needs relative to the D2 package capabilities and ensure adequate heatsinking infrastructure is available.

Part Context

This component belongs to the MD200 series of power diode modules from MCC. Similar variants include MD200C16D2-BP and MD200A16D2-BP, which may differ in speed or specific internal construction while sharing the same current and voltage ratings.

Replacement Considerations

Cross-reference with MD200C16D2-BP and MD200A16D2-BP for potential functional substitutes within the same manufacturer line. Verify pinout compatibility and thermal resistance specifications before substituting.
