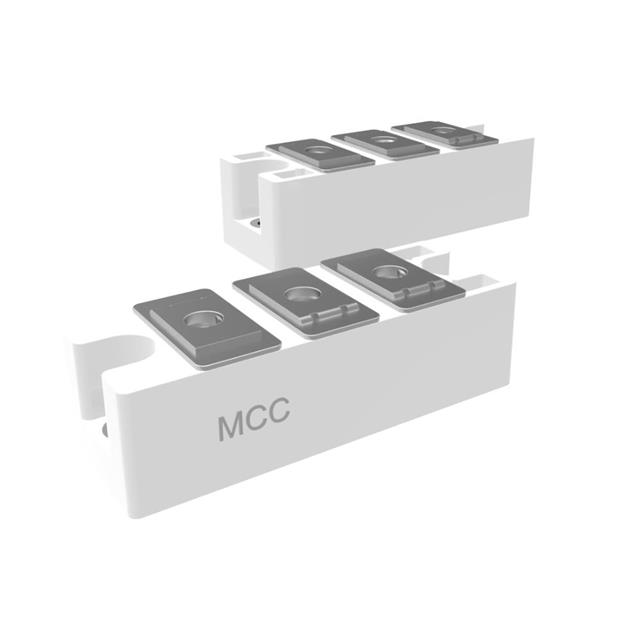

MD240C18D2-BP

$35.98

Description：DIODE MODULE GP 1800V 240A D2
Series：-

SKU:1bc5b3cffc1a Category: Diode Arrays Brand: MCC (Micro Commercial Components)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE GP 1800V 240A D2
Series：-
Mfr：MCC (Micro Commercial Components)
Package：Bulk
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1800 V
Current - Average Rectified (Io) (per Diode)：240A
Voltage - Forward (Vf) (Max) @ If：1.25 V @ 300 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：9 mA @ 1800 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：D2
Grade：-
Qualification：-

Download product information

MD240C18D2-BP

Overview

The MD240C18D2-BP is a standard recovery power diode module manufactured by Micro Commercial Components. It utilizes silicon technology and features a D2 package with screw mount installation style. The device supports a maximum repetitive peak reverse voltage of 1.8 kV and exhibits a forward voltage of 1.15 V. It operates within a temperature range from -40 C to +150 C junction temperature. The unit weighs 164 g and is supplied in bulk packaging.

Feature Summary

High voltage capability with 1.8 kV reverse voltage rating
Robust mechanical construction using screw mount design
Wide thermal operating range suitable for demanding environments

Applications

Industrial power conversion systems
High voltage rectification circuits
Power supply modules requiring standard recovery characteristics

Procurement Notes

Verify the specific suffix BP against official MCC documentation to confirm packaging and material compliance details. Confirm availability status as distribution channels may vary. Ensure the D2 package dimensions match the target PCB or heatsink mounting requirements before finalizing procurement decisions.

Selection Notes

Select this component when high reverse voltage blocking is required alongside standard recovery speed. The screw mount interface necessitates appropriate mechanical fastening hardware. Verify that the 1.15 V forward voltage drop aligns with system efficiency targets. Ensure thermal management solutions support the specified operating temperature limits.

Part Context

This part belongs to the MD240C18D2 series of standard recovery power modules from Micro Commercial Components. These modules are designed for general purpose high voltage applications. The D2 package provides a standardized form factor for industrial power electronics assemblies.
