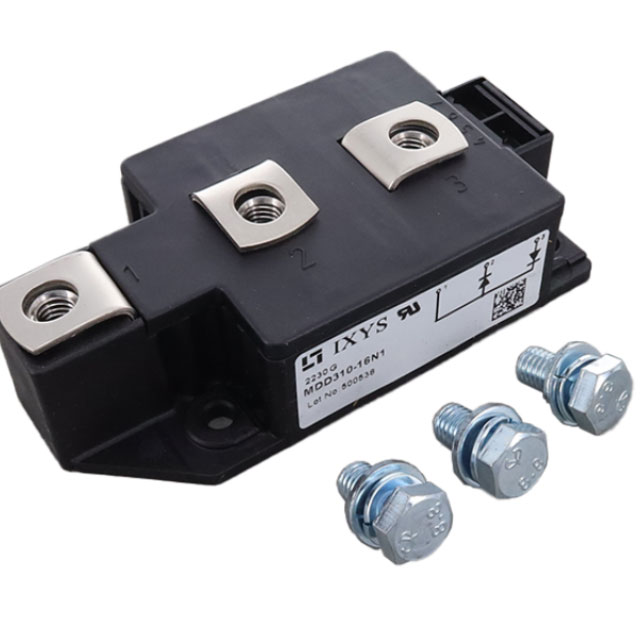

MDD310-16N1

$100.72

Description：DIODE MODULE GP 1600V 305A Y2DCB
Series：-

SKU:1ea9b2f79b71 Category: Diode Arrays Brand: IXYS

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE GP 1600V 305A Y2DCB
Series：-
Mfr：IXYS
Package：Box
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：1600 V
Current - Average Rectified (Io) (per Diode)：305A
Voltage - Forward (Vf) (Max) @ If：1.2 V @ 600 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：40 mA @ 1600 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Y2-DCB
Supplier Device Package：Y2-DCB
Grade：-
Qualification：-

Download product information

MDD310-16N1

Overview

The IXYS MDD310-16N1 is a high-power diode module featuring two planar passivated silicon chips in a Y2-DCB package. It provides a maximum repetitive reverse voltage (VRRM) of 1600 V and a maximum average forward current (IFAVM) of 305 A per diode at a case temperature of 100°C. The module utilizes a direct copper bonded Al2O3 ceramic base plate for thermal management and offers an isolation voltage of 3600 Vrms. With a typical weight of 320 g, it supports screw mounting with specified torques for terminals and mounting hardware.

Feature Summary

Direct copper bonded Al2O3 ceramic base plate
Planar passivated chips
Isolation voltage 3600 V~

Applications

Supplies for DC power equipment
DC supply for PWM inverter
Field supply for DC motors
Battery DC power supplies

Procurement Notes

Verify the specific part number against official IXYS documentation to confirm electrical ratings and physical dimensions. Ensure that the required isolation voltage and thermal characteristics align with the system design specifications before procurement. Confirm compliance with relevant safety standards such as UL registration E72873.

Selection Notes

Select this module based on its 1600 V reverse voltage rating and 305 A average forward current capability per diode. Consider the thermal resistance values and the need for appropriate heatsinking to maintain junction temperatures within the specified operating range. Evaluate the mechanical requirements for screw mounting and terminal connections.

Part Context

The MDD310-16N1 belongs to the MDD310 series of high-power diode modules manufactured by IXYS. This series is designed for demanding power electronics applications requiring robust performance and reliability. The module integrates two diodes in a single compact package, facilitating efficient space utilization in power conversion systems.
