MDF1005GAD102ATD25

Chip Ferrite Bead Overview

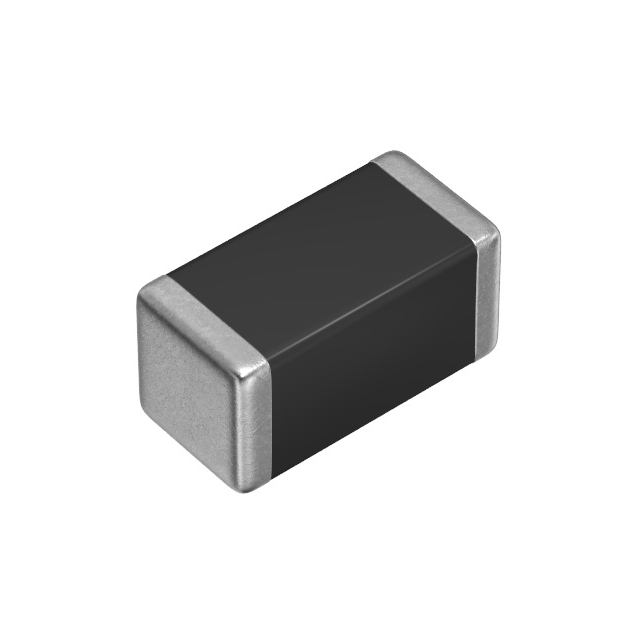

The MDF1005GAD102ATD25 is a common mode choke filter from the TDK MDF series, designed for automotive applications. It features a 0402 (1005 metric) surface mount package with dimensions of 1.0 mm length, 0.5 mm width, and 0.5 mm height. The component has a maximum DC resistance of 690 mOhms and supports a maximum DC current of 550 mA. It operates within a temperature range of -55°C to +125°C and holds AEC-Q200 qualification.

Chip Ferrite Bead Feature Summary

• Common mode noise suppression for differential signal lines
• AEC-Q200 qualified for automotive reliability standards
• Compact 0402 surface mount footprint

Chip Ferrite Bead Applications

• Automotive electronic systems
• UHF band signal line filtering
• Noise suppression in automotive grade circuits

Chip Ferrite Bead Procurement Notes

Verify the specific part number against official TDK documentation to confirm electrical characteristics and packaging details. Ensure that the procurement source provides valid traceability and authenticity certificates. Cross-reference the manufacturer's latest datasheet to confirm compliance with AEC-Q200 standards and operational temperature ranges before integration into designs.

Chip Ferrite Bead Selection Notes

Select this component for applications requiring common mode noise attenuation in space-constrained automotive environments. The 0402 package size suits high-density PCB layouts. Consider the 550 mA current rating and 690 mOhm DC resistance when designing power or signal paths. Verify compatibility with reflow soldering profiles suitable for the specified operating temperature range.

Chip Ferrite Bead Part Context

This component belongs to the MDF series of noise suppression filters manufactured by TDK Corporation. The series is engineered for automotive electronics, offering reliable performance under harsh environmental conditions. The MDF1005GAD102ATD25 specifically addresses common mode interference in compact form factors, supporting modern vehicle electronic architectures.

Chip Ferrite Bead Replacement Considerations

Consult TDK official documentation for verified substitute part numbers within the MDF series or equivalent automotive-grade common mode chokes. Ensure replacement components match the 0402 footprint, AEC-Q200 qualification, and similar electrical parameters for direct interchangeability.
