MDKK2020T100MM

Fixed Inductors Overview

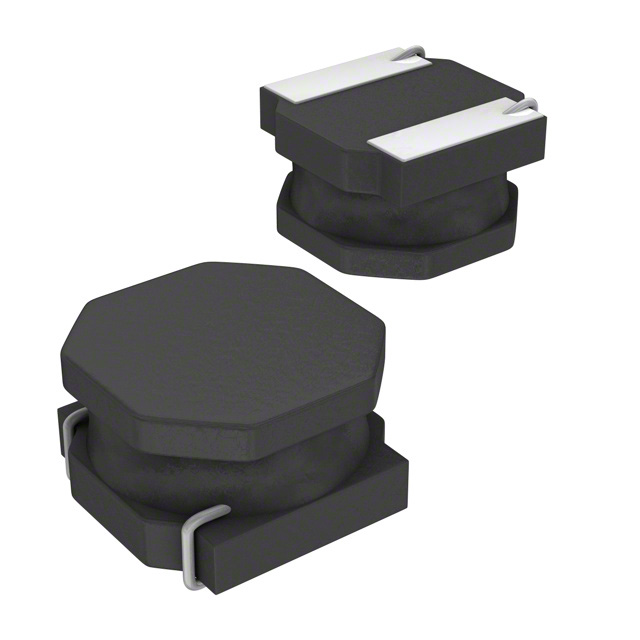

The MDKK2020T100MM is a shielded metal core SMD power inductor from Taiyo Yuden. It features a wirewound drum core construction with an inductance of 10 µH and a tolerance of ±20%. The component has a maximum DC resistance of 690 mOhms, a saturation current of 900 mA, and a rated current of 750 mA. It operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Shielded metal core design minimizes electromagnetic interference
• Wirewound drum core structure for stable performance
• Suitable for surface mount PCB assembly

Fixed Inductors Applications

• Power supply circuits
• DC-DC converter modules
• General electronic equipment filtering

Fixed Inductors Procurement Notes

Verify the specific ordering suffix and manufacturer part number against official Taiyo Yuden documentation before purchase. Ensure compatibility with your circuit requirements regarding current ratings and physical dimensions. Confirm RoHS compliance status through the latest datasheet or supplier certification documents to meet regulatory standards.

Fixed Inductors Selection Notes

Select this component when a compact, shielded power inductor is required for space-constrained designs. Consider the 900 mA saturation current limit for peak load conditions. The metal core material offers advantages in thermal management compared to standard ferrite cores in high-current applications.

Fixed Inductors Part Context

This part belongs to Taiyo Yuden's metal core SMD power inductor series. These components are designed for high-current applications where magnetic shielding is critical to prevent noise coupling. The series typically includes various inductance values and current ratings to support diverse power management architectures.

Fixed Inductors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data. Consult official distributor databases or manufacturer cross-reference guides for potential alternatives.
