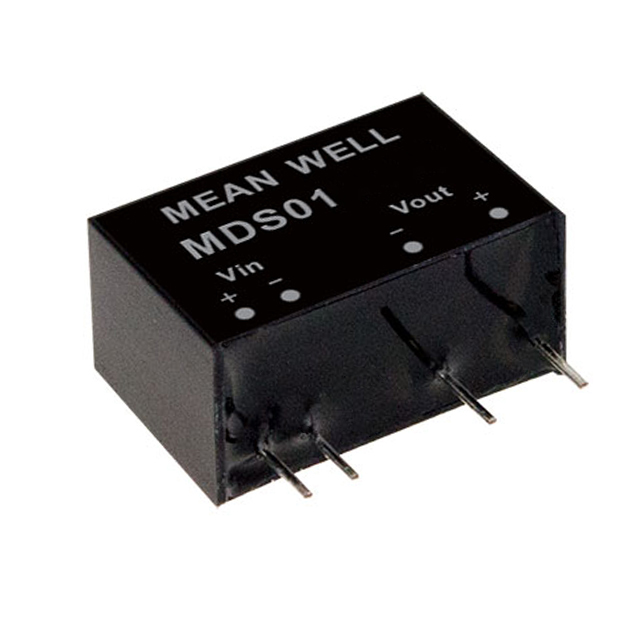

MDS01M-15

MDS01M-15 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists MEAN WELL USA Inc.. Its product description is DC DC CONVERTER 15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for MDS01M-15

• Description：DC DC CONVERTER 15V 1W
• Series：MDS01 (1W)
• Mfr：MEAN WELL USA Inc.
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA
• Power (Watts)：1 W
• Voltage - Isolation：6 kV
• Applications：Medical
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm)
• Supplier Device Package：7-SIP
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for MDS01M-15
