MDT420A02002

Edgeboard Connectors Overview

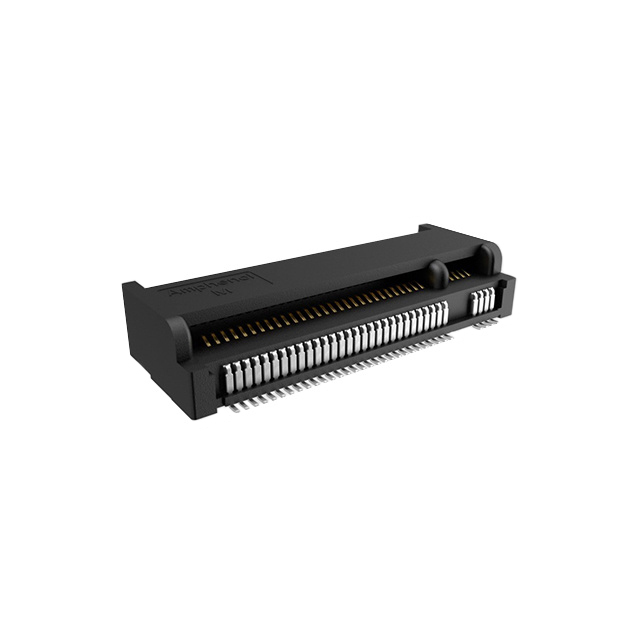

The MDT420A02002 is a female edgeboard connector designed for M.2 (NGFF) mini cards. It features 67 positions with a 0.020 inch (0.50mm) pitch across two rows. The contacts are made of copper alloy with gold plating, housed in black liquid crystal polymer (LCP). It supports surface mount installation at a right angle and includes board lock and Key A features.

Edgeboard Connectors Feature Summary

• Supports high-speed data transfer for M.2 applications
• Includes mechanical board lock for secure retention
• Utilizes Key A configuration for specific slot compatibility

Edgeboard Connectors Applications

• M.2 module interconnection
• High-density electronic assemblies
• Data center server storage solutions

Edgeboard Connectors Procurement Notes

Verify the specific suffix '02002' against official Amphenol ICC documentation to confirm contact plating thickness and material specifications, as these vary significantly within the MDT420 series. Ensure the Key A designation matches the target motherboard slot requirements before procurement.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, surface-mount M.2 connector with Key A locking is required. Confirm that the 67-position layout aligns with the specific M.2 card form factor. Verify thermal operating range compliance for the intended application environment.

Edgeboard Connectors Part Context

This part belongs to the Amphenol ICC MDT420 series, which provides high-density interconnect solutions for next-generation computing platforms. The series is engineered to support PCIe Gen 3/4 standards, ensuring reliable signal integrity for modern storage and expansion modules.

Edgeboard Connectors Replacement Considerations

MDT420A01001 and MDT420A02001 share the same physical footprint and pin count but differ in keying or plating specifications. Substitution requires verification of electrical ratings and mechanical locking compatibility.
